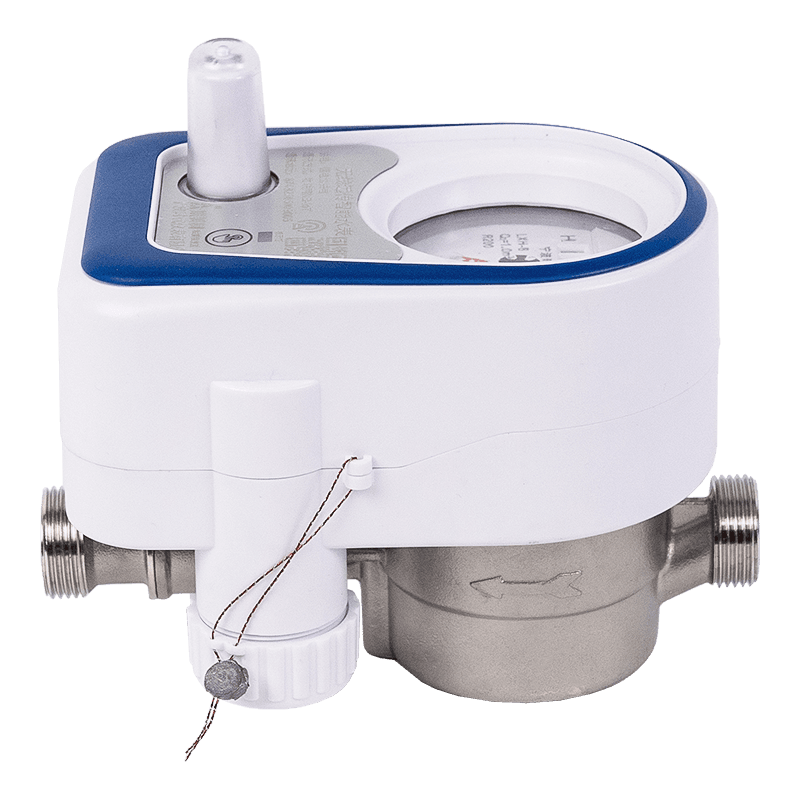

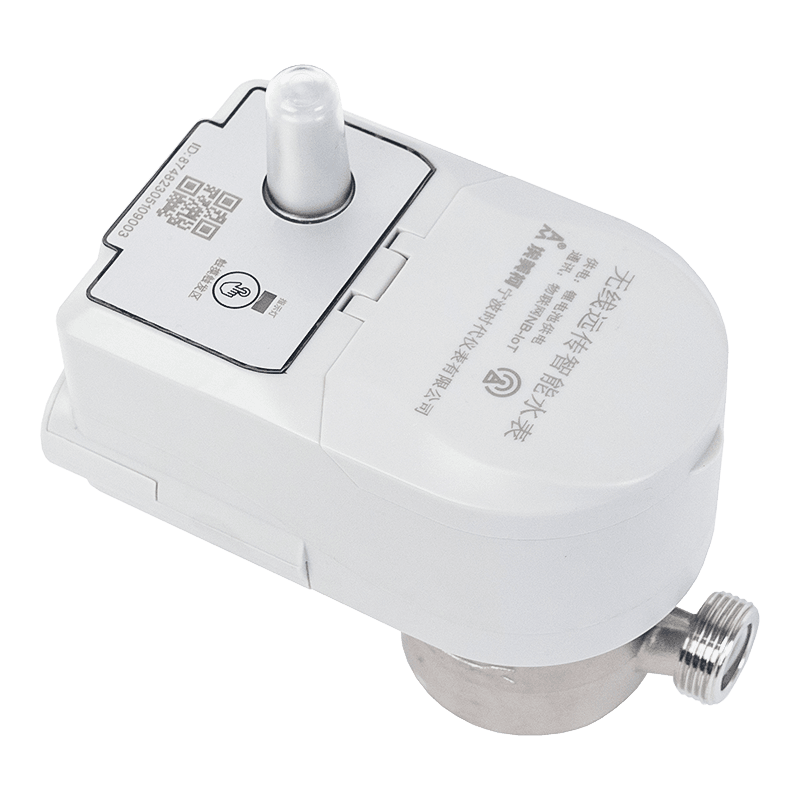

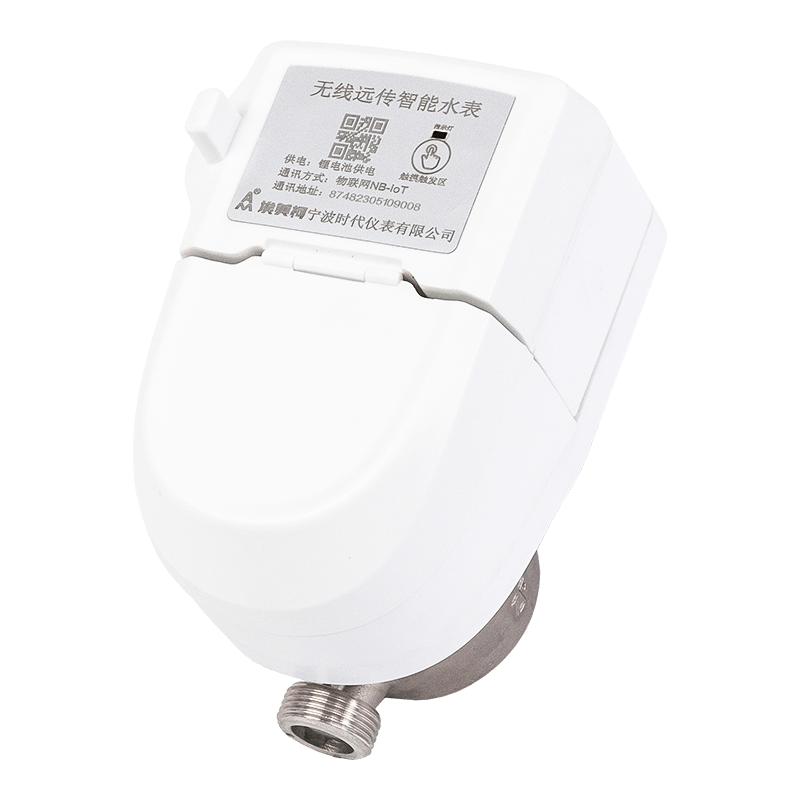

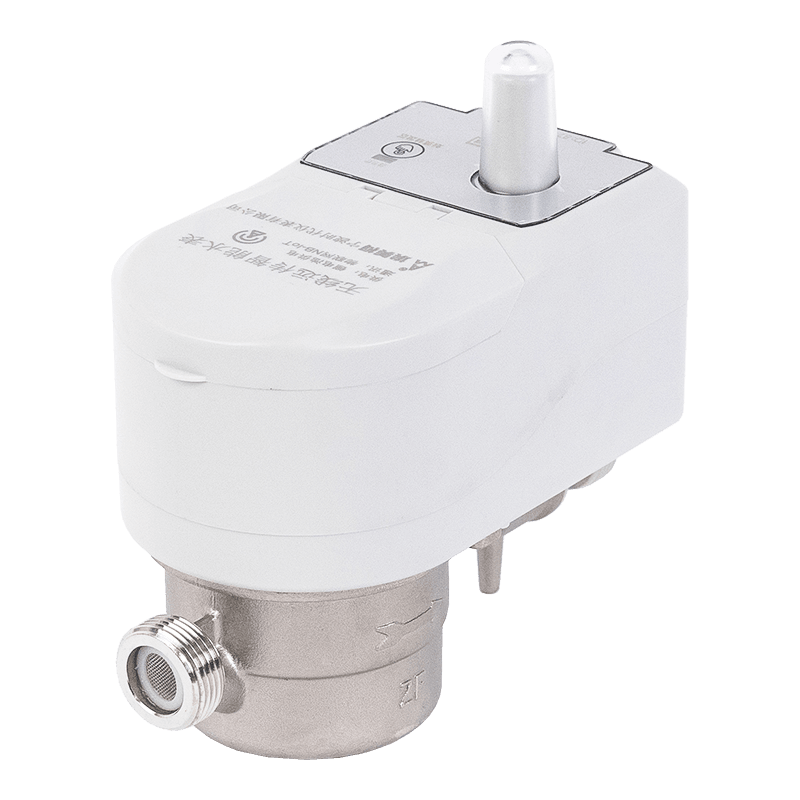

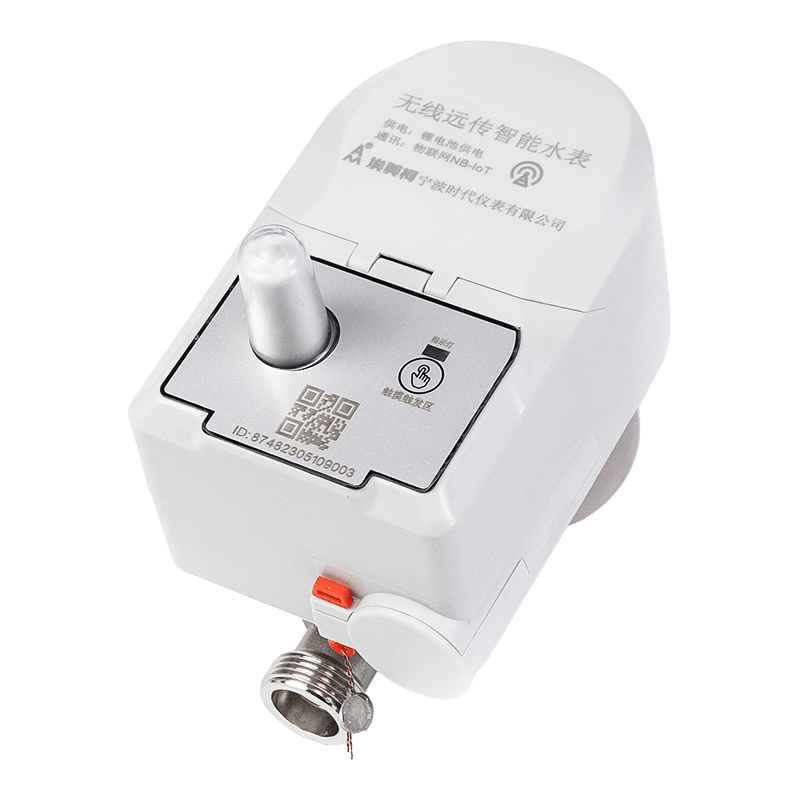

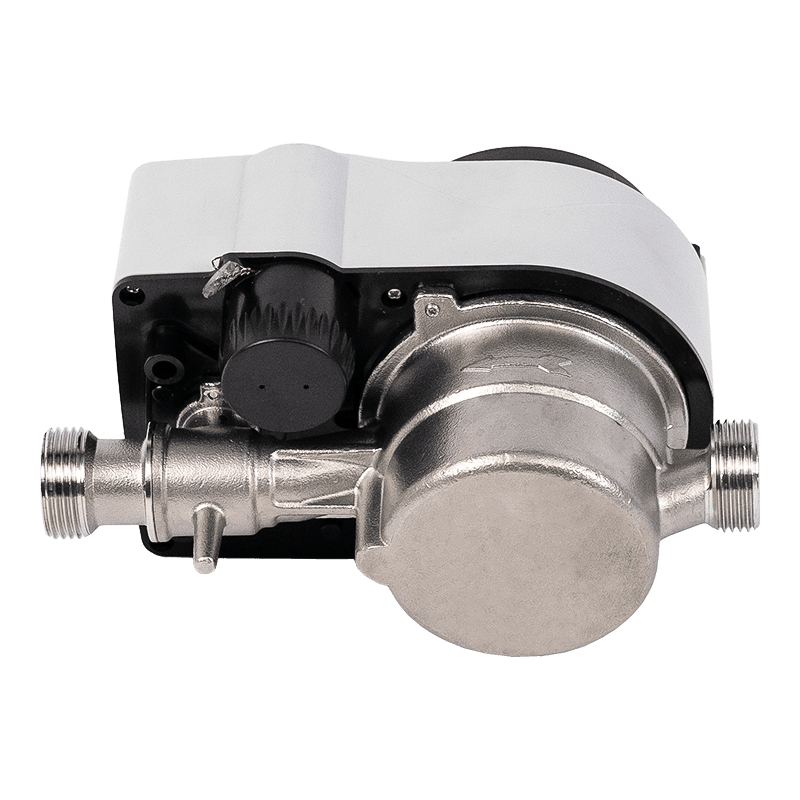

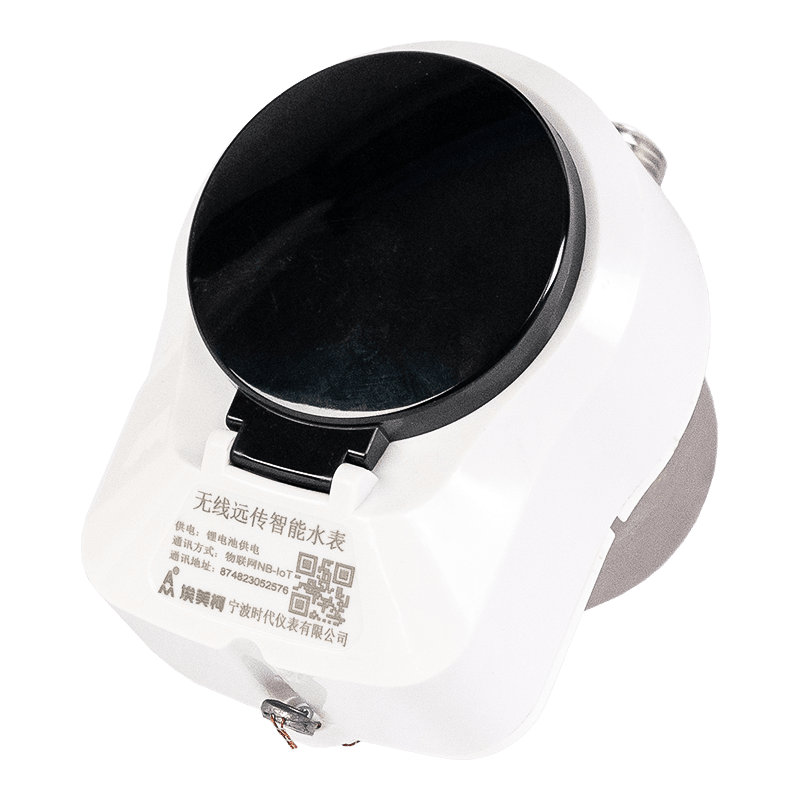

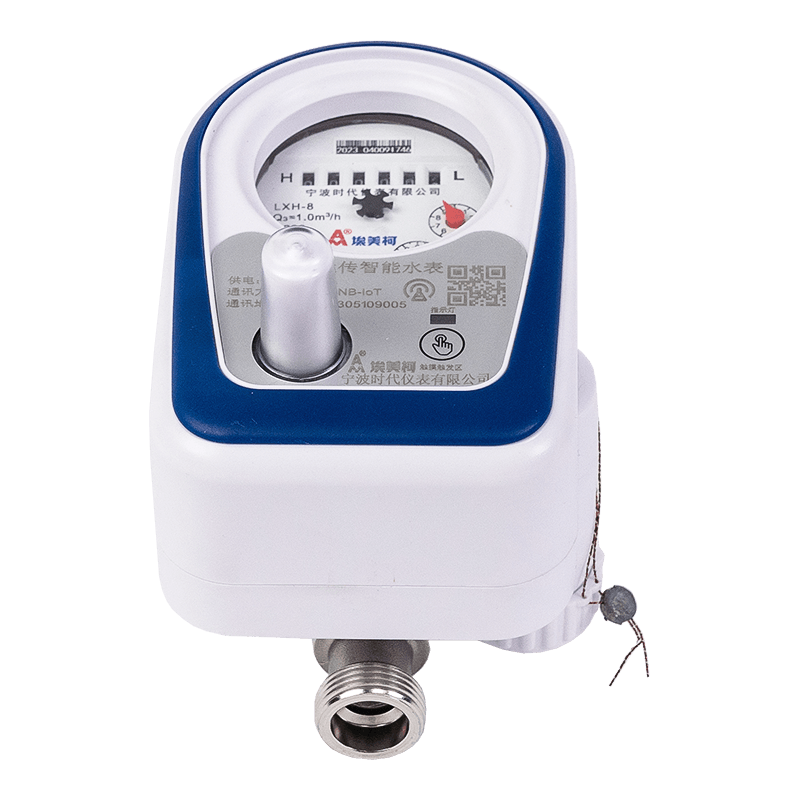

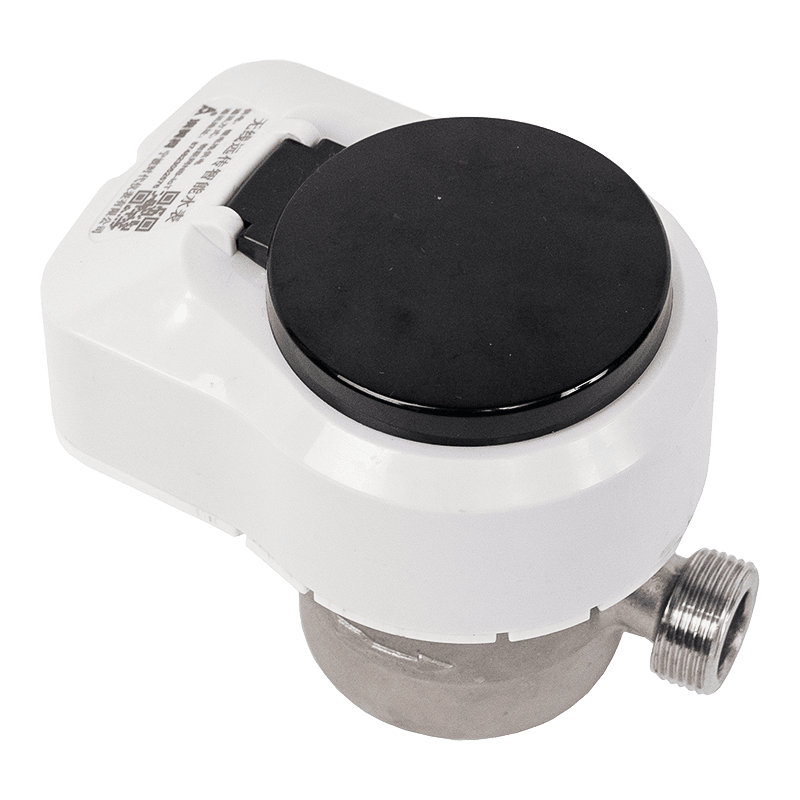

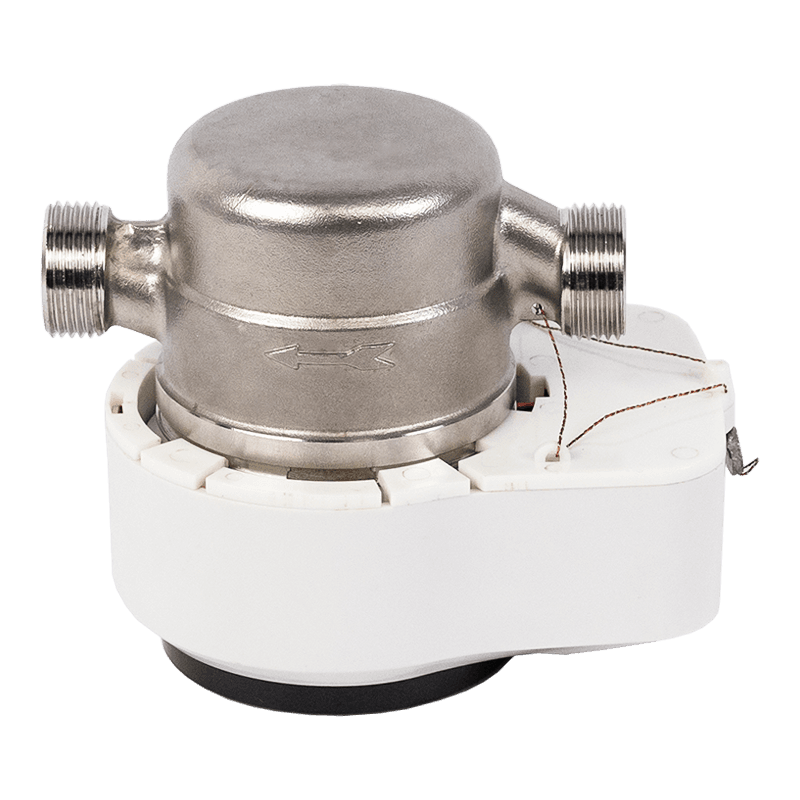

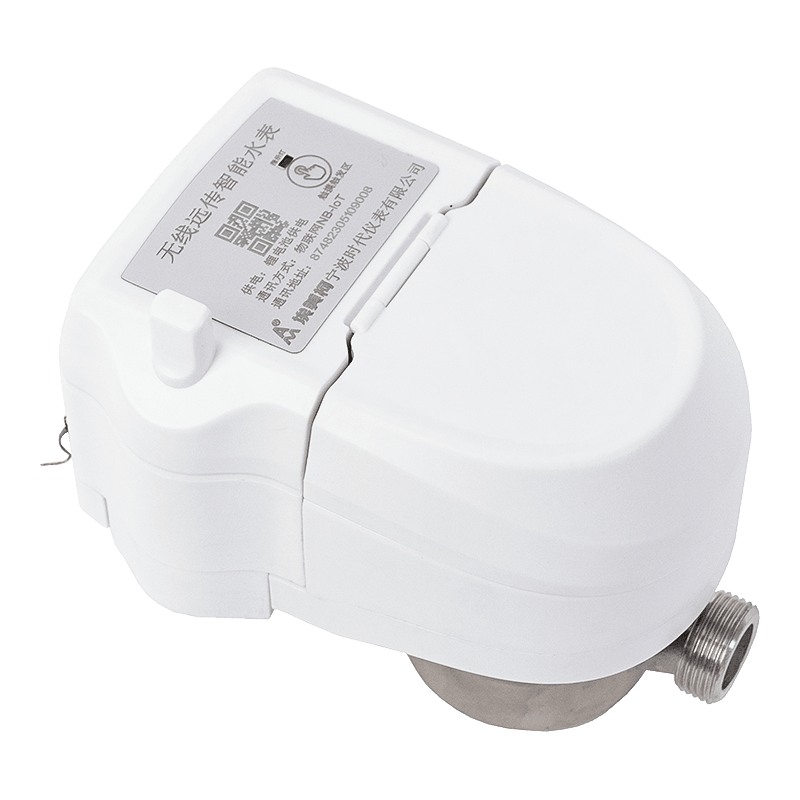

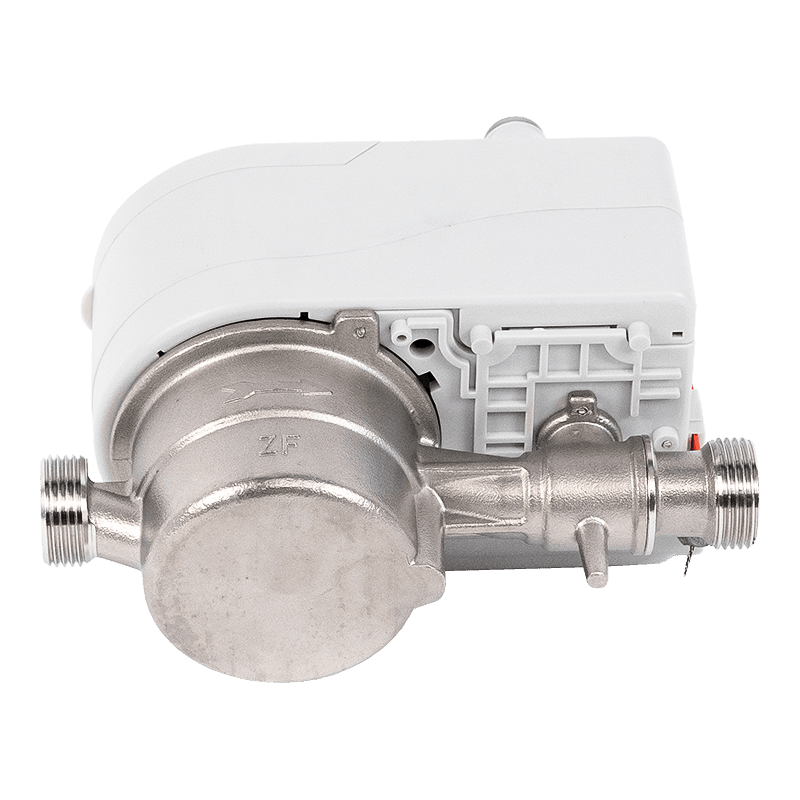

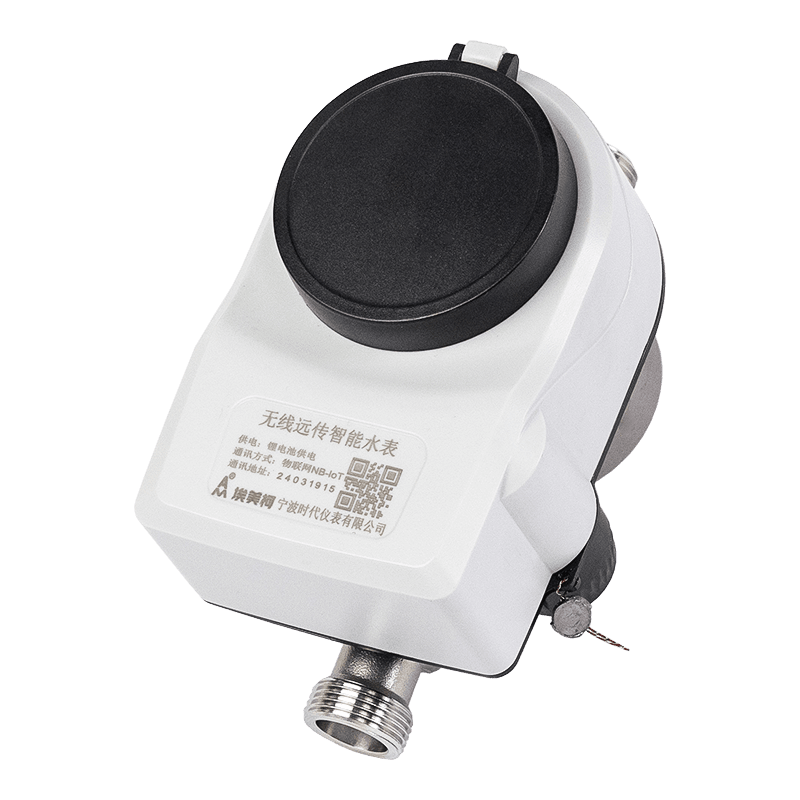

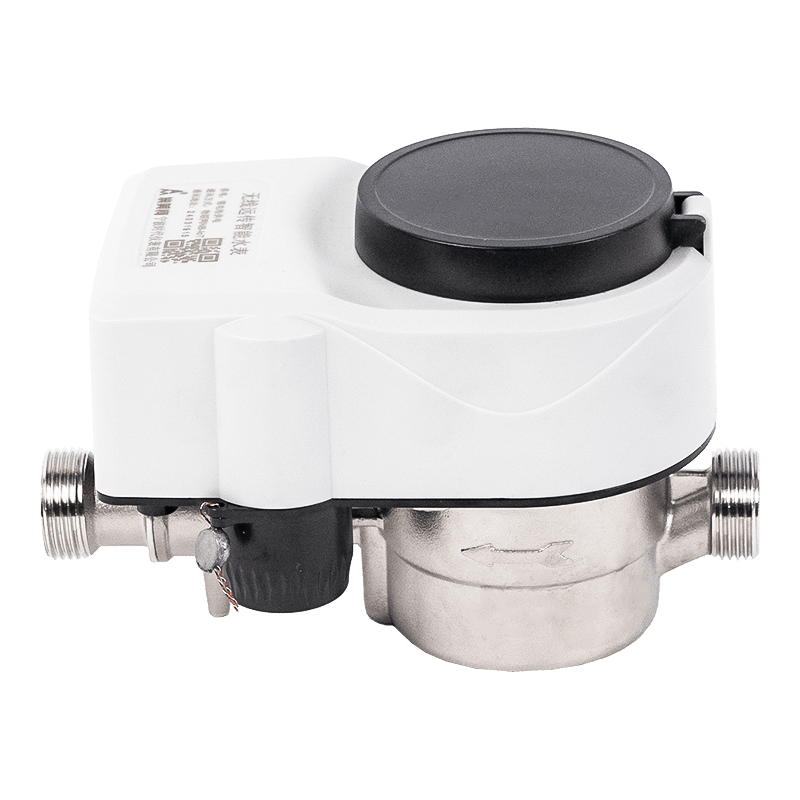

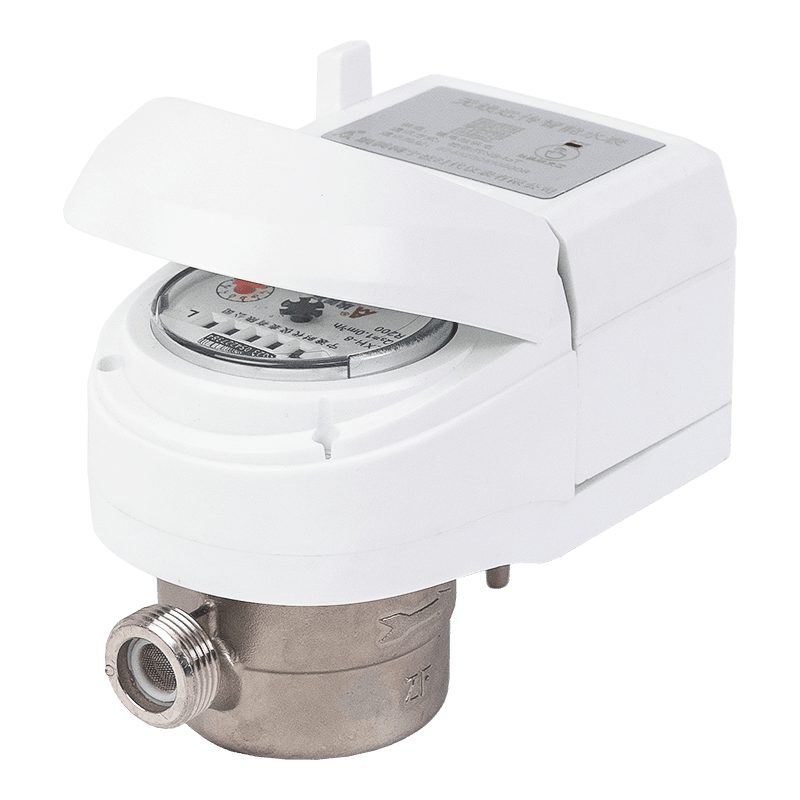

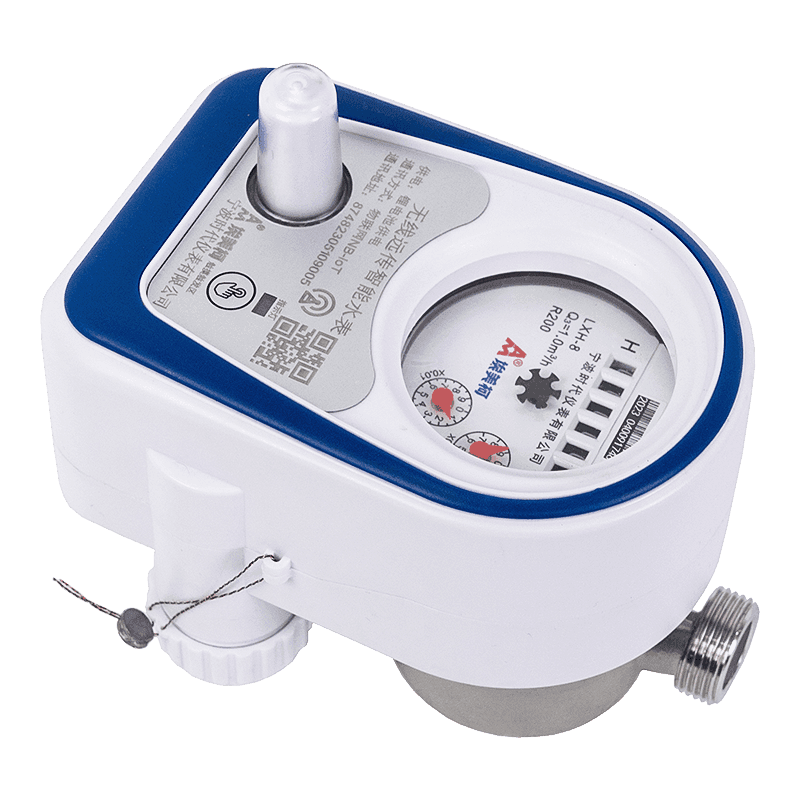

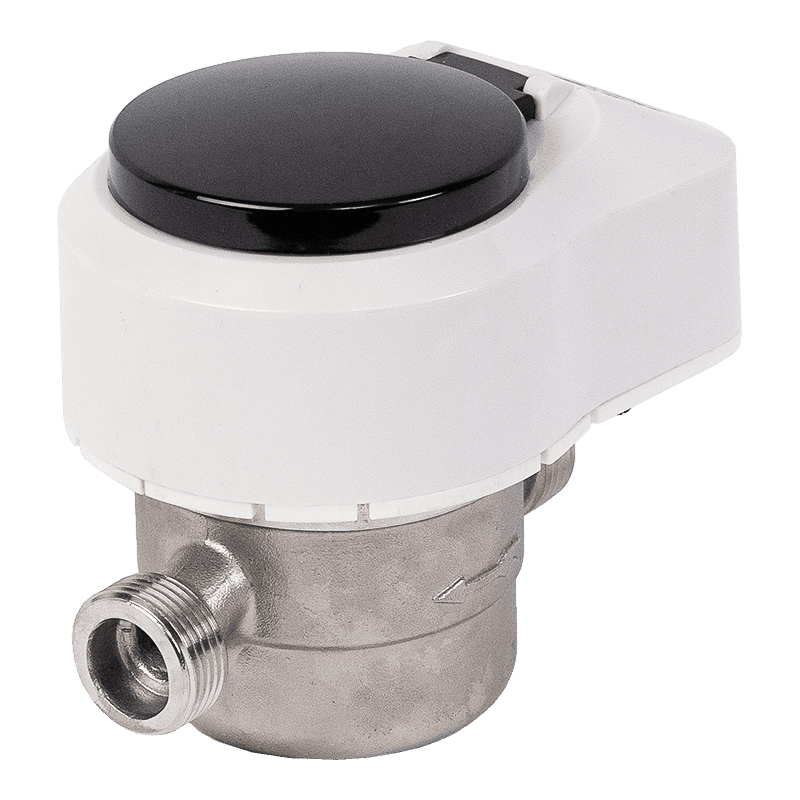

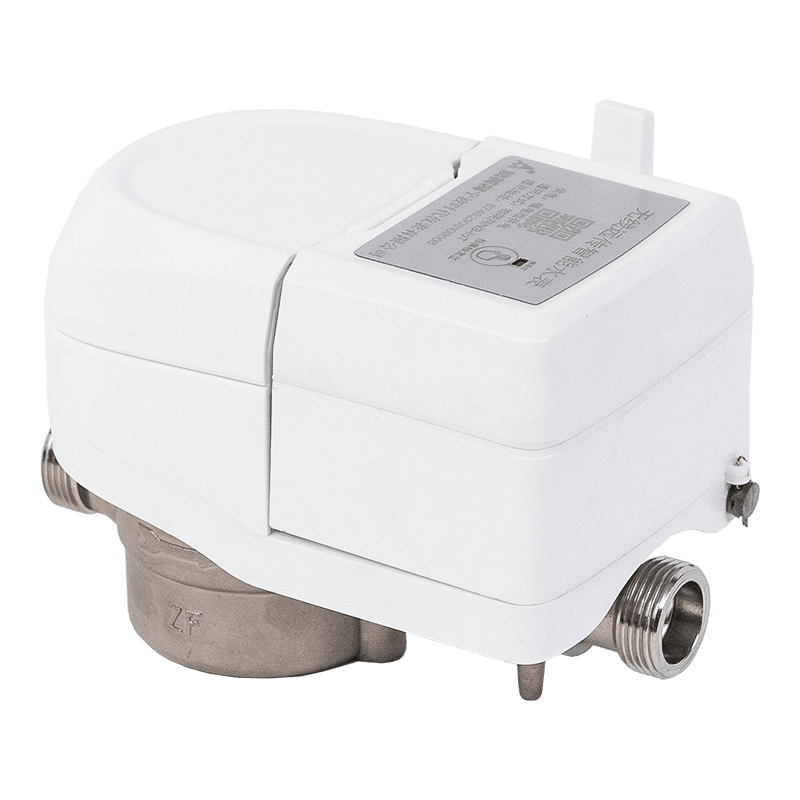

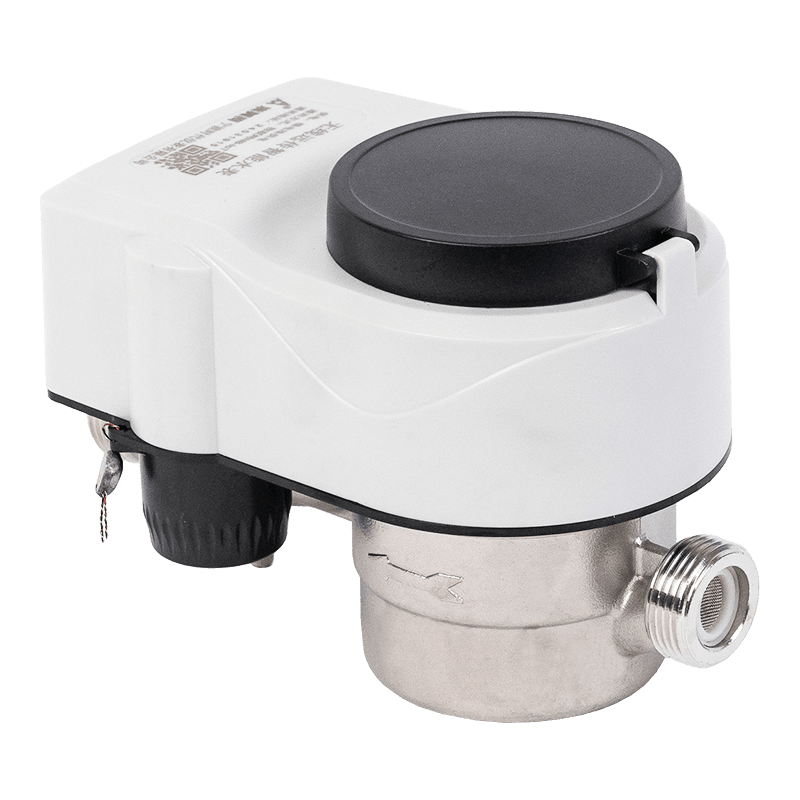

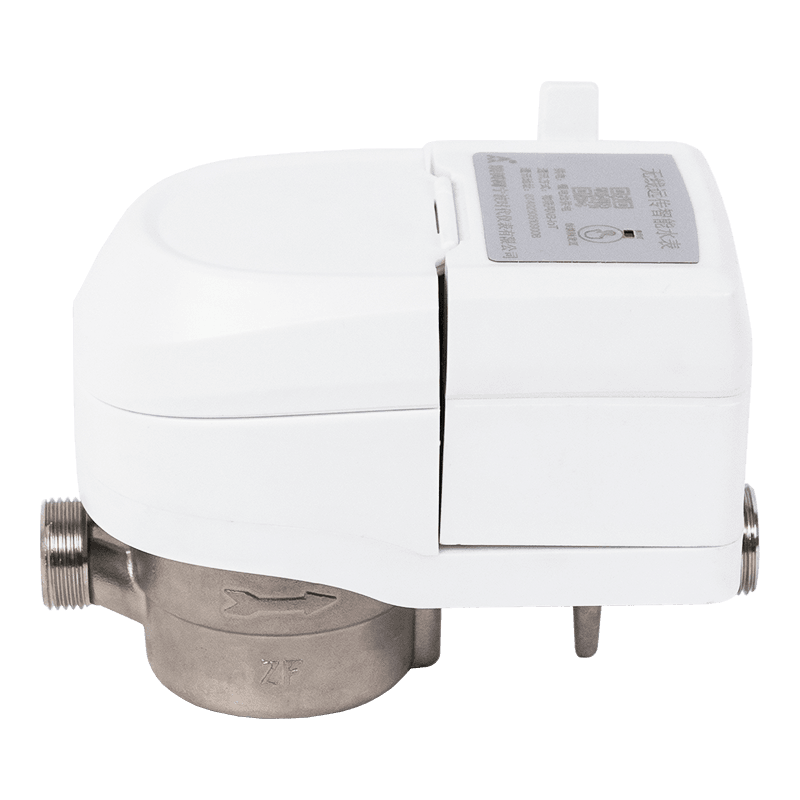

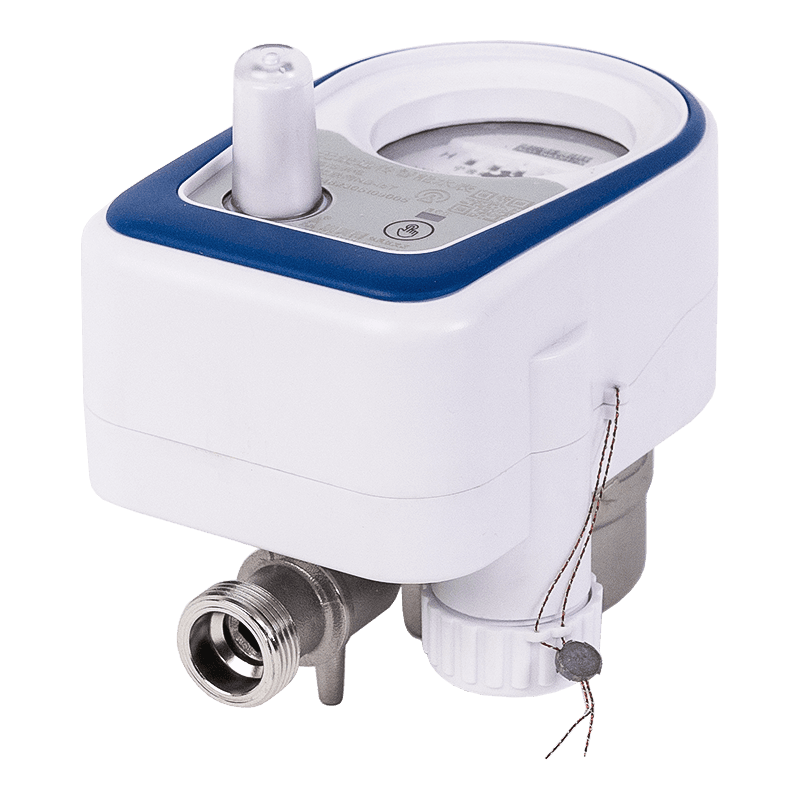

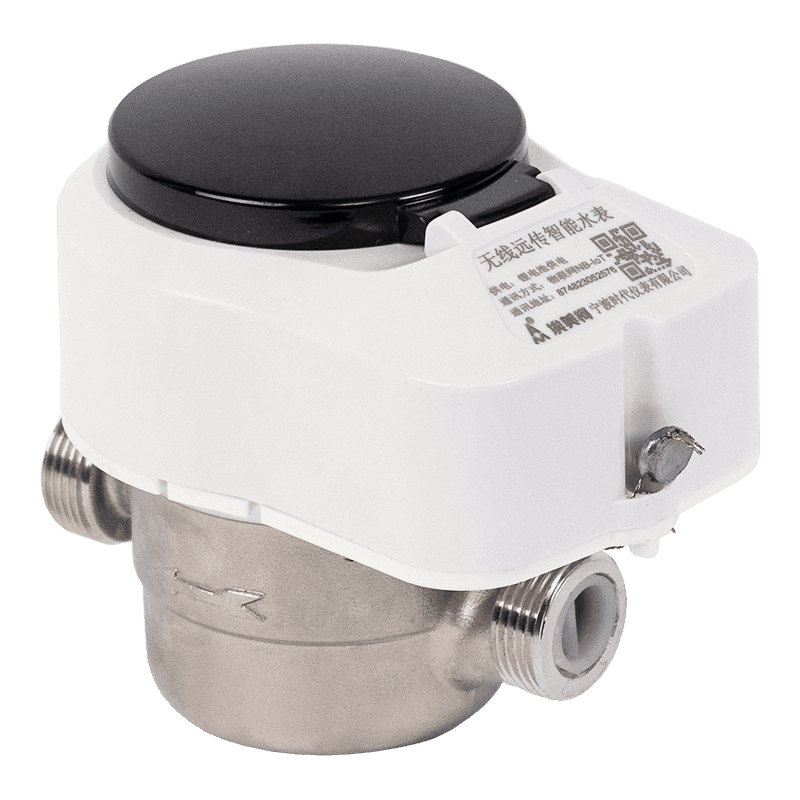

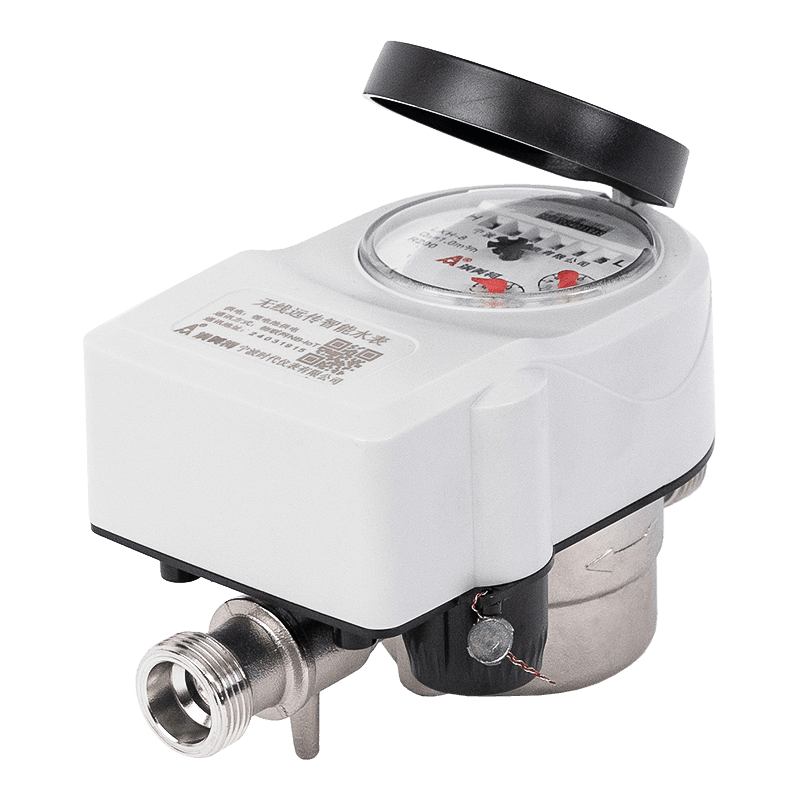

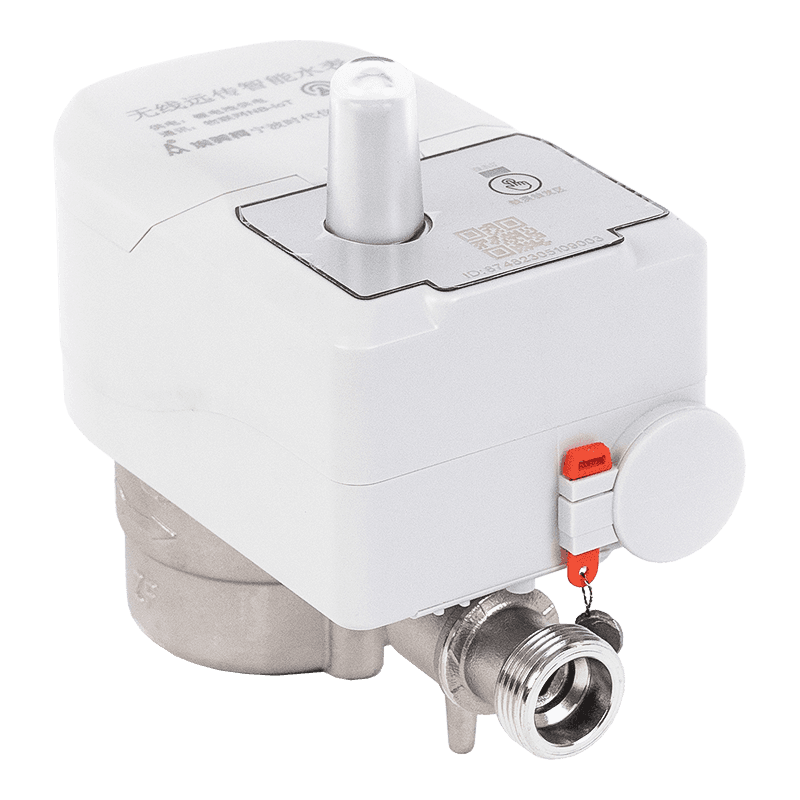

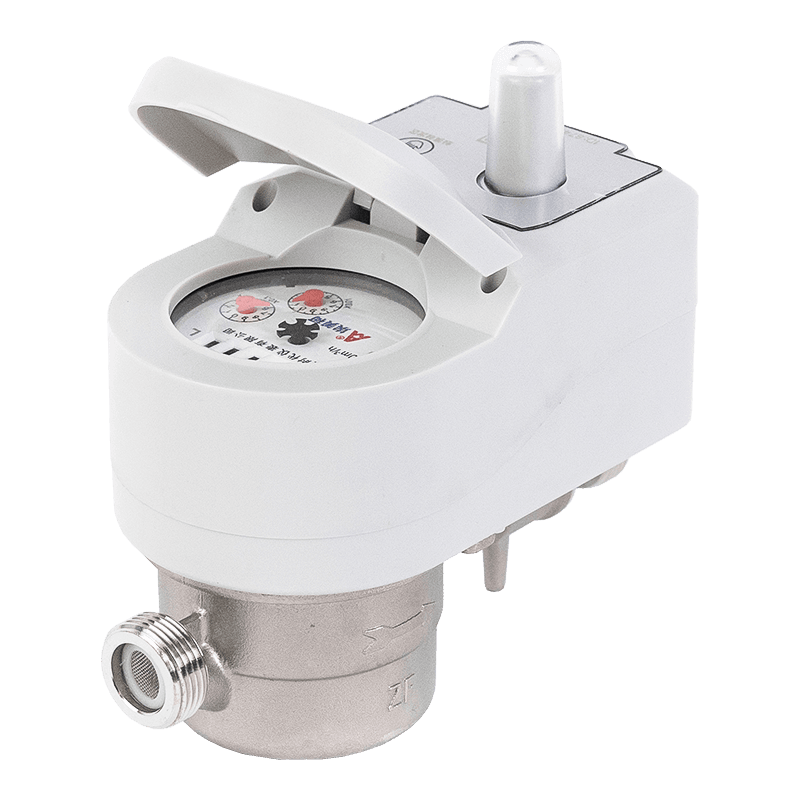

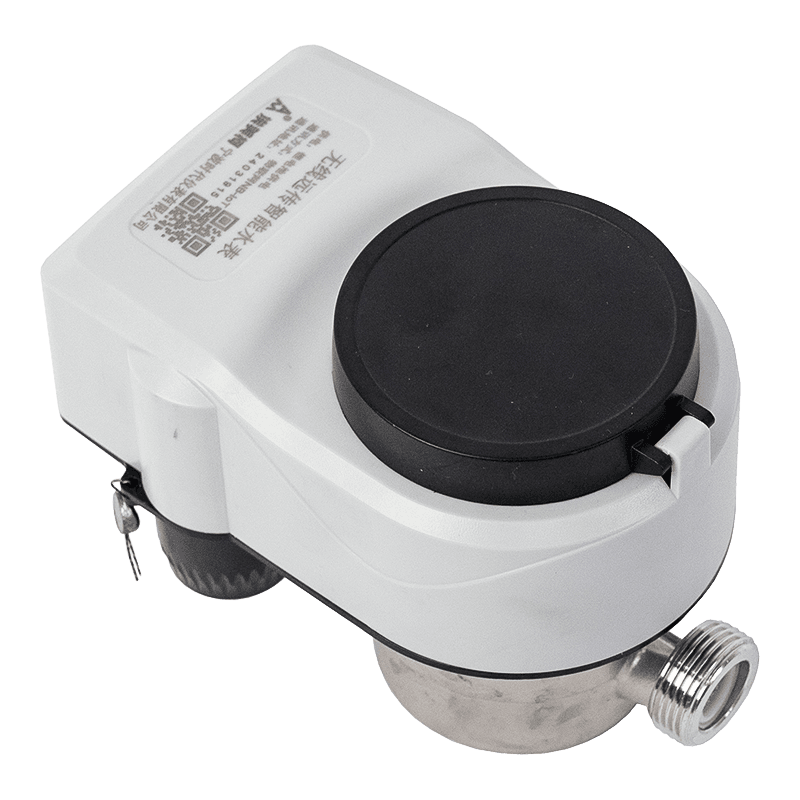

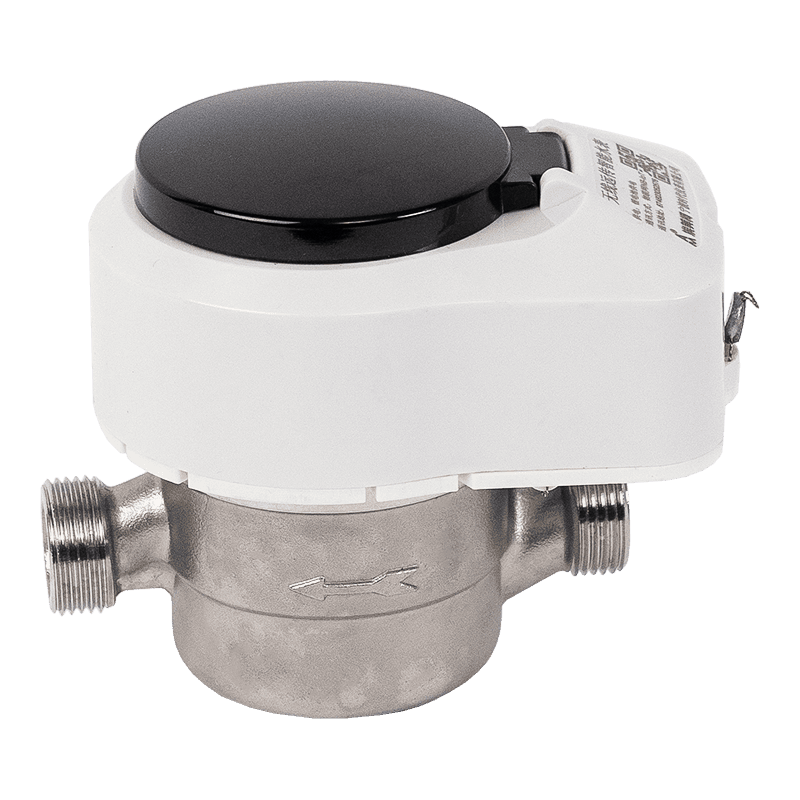

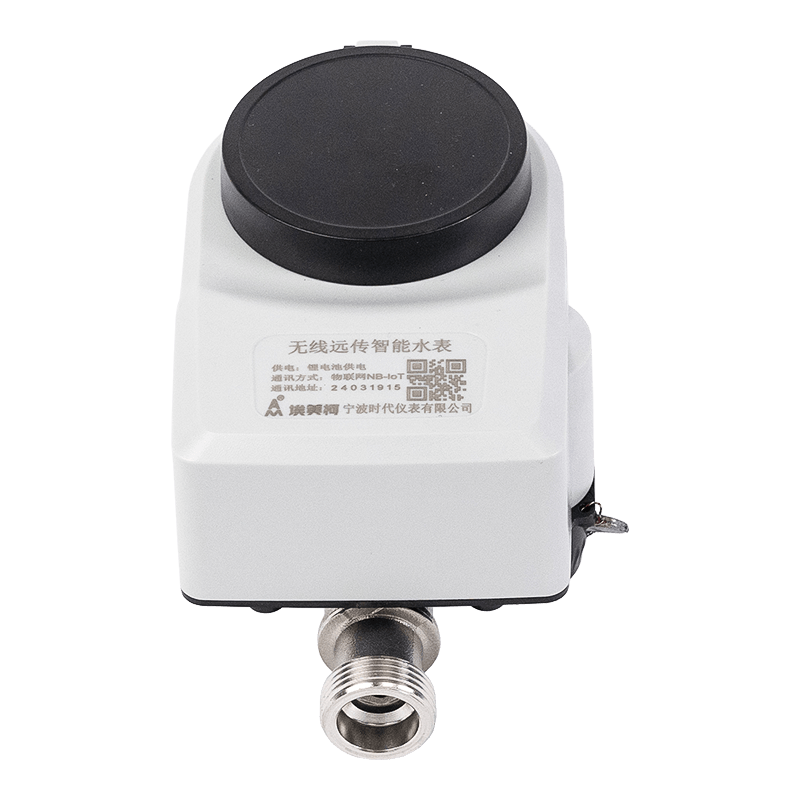

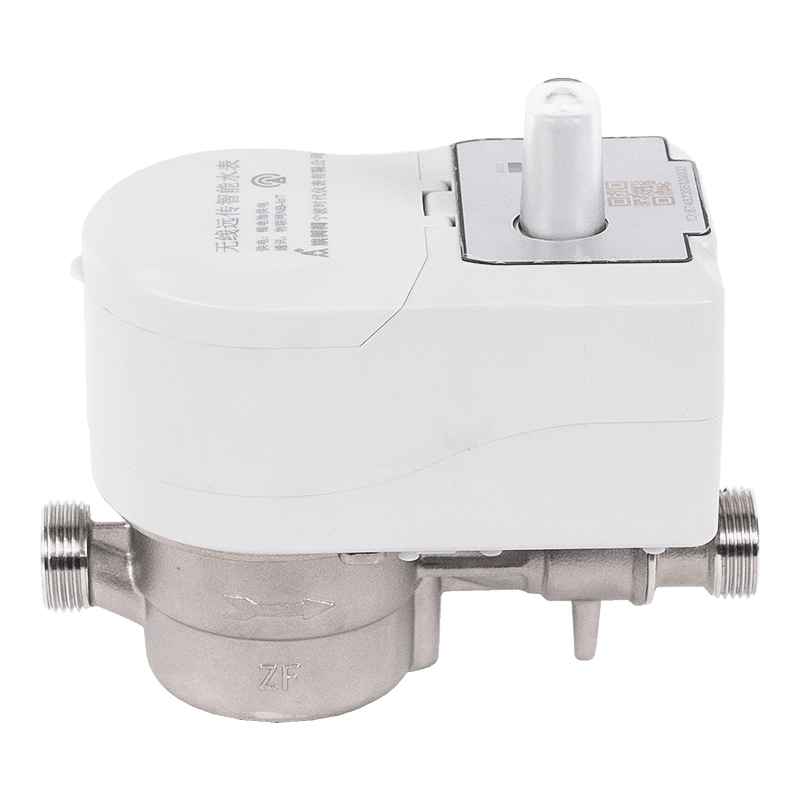

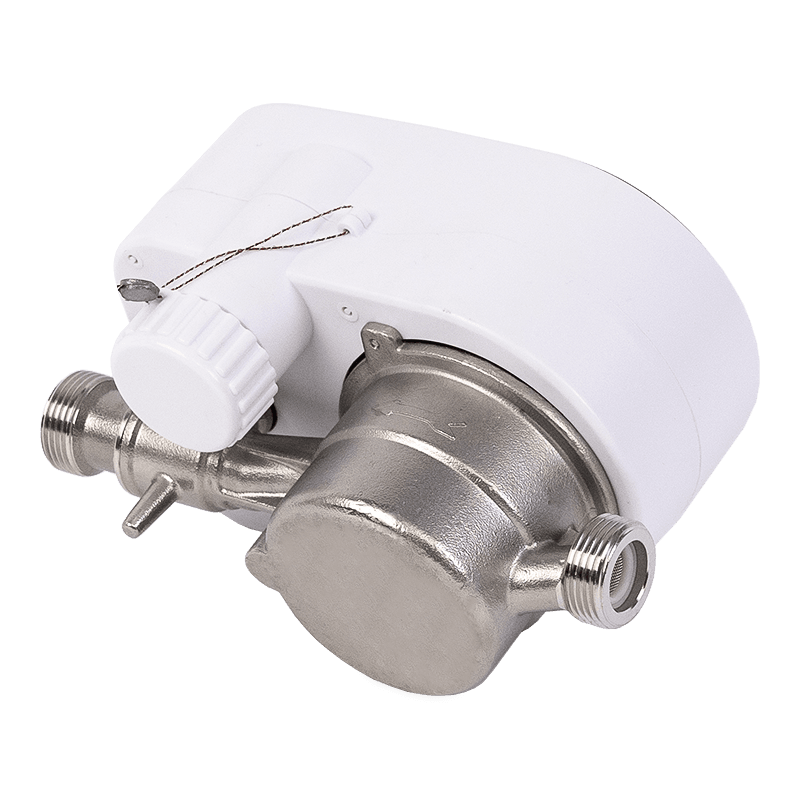

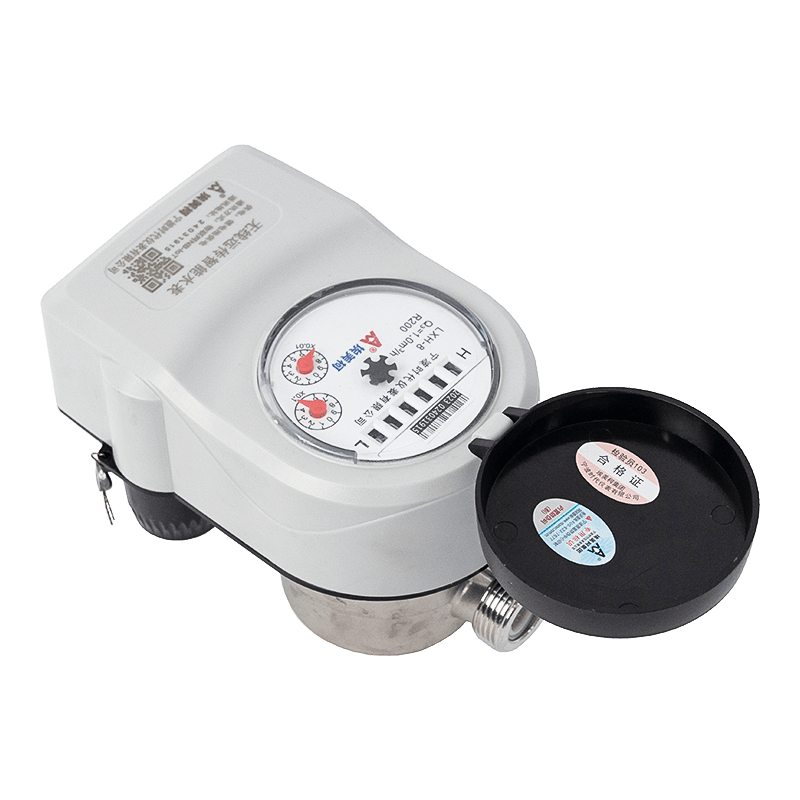

The body shell material is stainless steel. It adopts a rotating piston structure, with continuous metering movement, balanced force, and stable output water flow; at the same time, it has low initial flow rate, high metering accuracy, and is safe and hygienic. Measured using the volumetric principle. High sensitivity. Any installation, measuring range up to R = 400. Dry counters (copper sealed or plastic sealed) can keep readings clear for a long time. The movement is made of high-quality materials, with long life and stable and reliable performance.
Details
R≥160, Temperature level: cold water should not be higher than 30℃ (hot water should not be higher than 90℃) and not lower than 0℃. Water pressure level: MAP 10Bar
Application
Record the total amount of water flowing through the tap water pipeline.
Feature

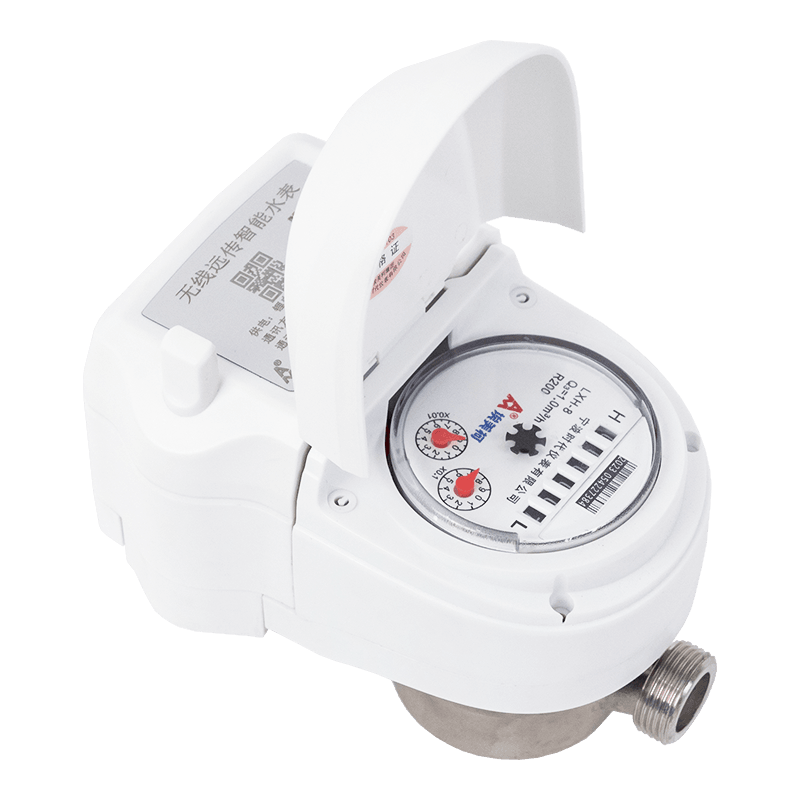

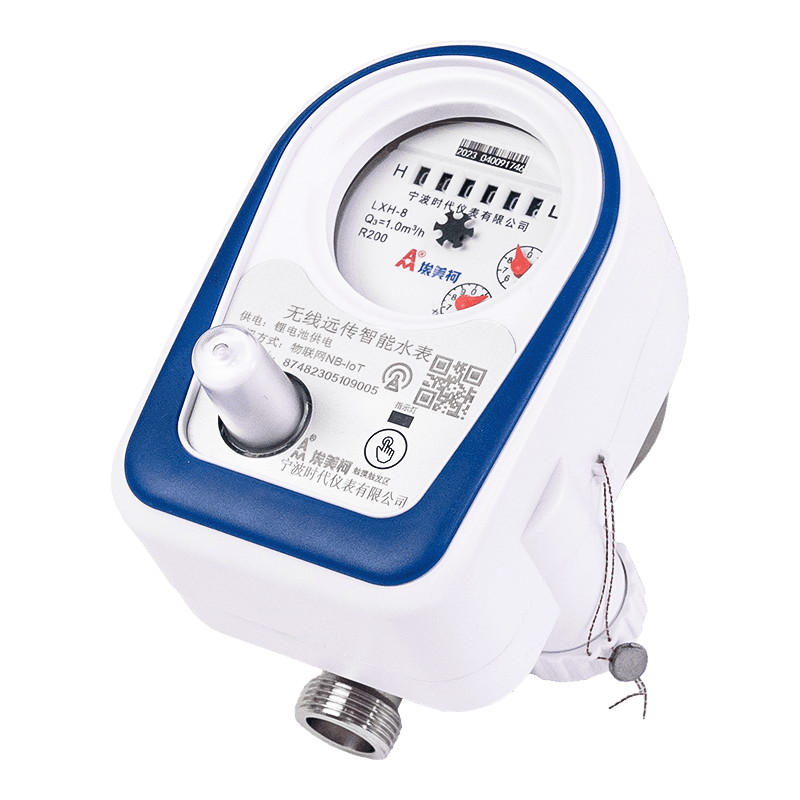

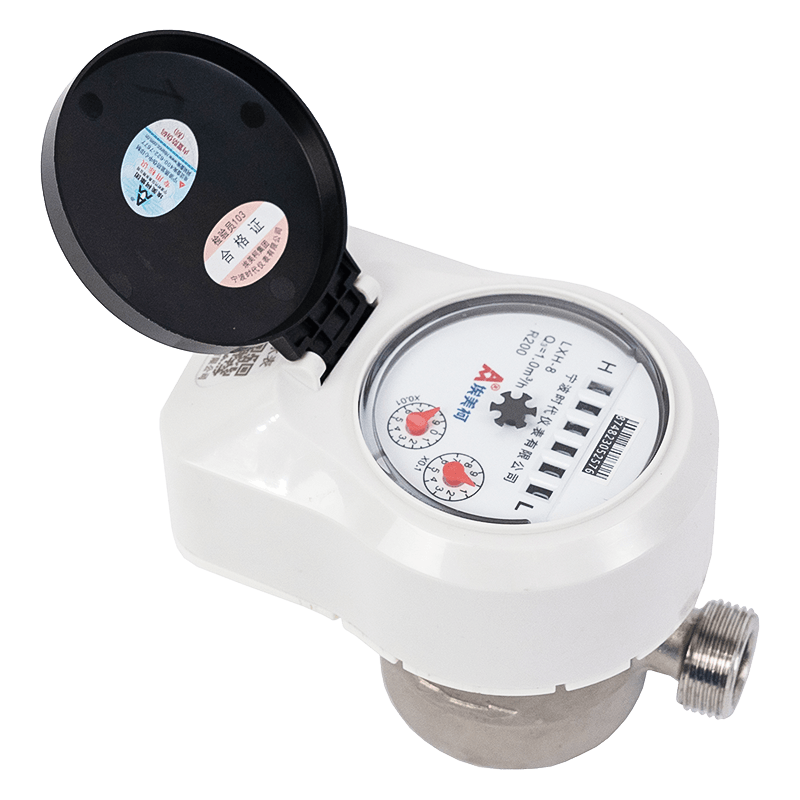

●Dry dial,convenient for reading,keep long-term cleanliness,long service life.
●Using high-quality materials ensure reliable performance,low starting flow rate,high measurement accuracy(up to R200),and durability.
●Use magnetic sensors ensures stable performance and high reliability.
Installation Requirements
● The water meter must be horizontally installed,with the reading surface upwards and the direction of the arrow being the same as the direction of the water flow.
● The pipeline must be flushed before installing the water meter.
● The water meter must be installed in a dry and easy to maintain environment,install in a dedicated meter box is recommended.
● Valves must be installed at the inlet and outlet of the water meter.
● Valve controlled water meter is optional.
● Modules can be customized to according to different water quality.
Conditions of Use
Water temperature:The working temperature for cold water meter between 0℃ and 30℃.
Pressure:≤1 MPa
Main Technical Data
|
Diameter |
Overload Flow |
Common Flow |
Boundary Flow |
Minimum Flow |
Minimum read value |
Maximum read value |
|
mm |
m³/h |
L |
h |
L |
||
|
8 |
1.25 |
1.0 |
10 |
6 |
0.01 |
9999999 |
