Made of high-quality materials, copper or iron shells are optional. One pulse signal can be selected from 10 liters, 100 liters, 1 ton or 10 tons. Available with cold or hot water. Dry dial, vacuum sealed, maintains clean readings for a long time. Vacuum sealed register, anti-freeze, provides clear readings for a long time. Internal or external adjustment device optional. Meter complies with ISO4064 standards.
Details
R≥100, Temperature level: cold water should not be higher than 30℃ (hot water should not be higher than 90℃) and not lower than 0℃. Water pressure level: MAP 10Bar.
Application
Record the total amount of water flowing through the tap water pipeline.
Feature
●Dry dial,high quality material with stable and reliable counting performance.
●Including horizontal installation type and vertical installation type.
●Copper or iron water meter shell available,communication components include hall component or reed switch, intermediate outlet or surface outlet are available for selection.
●The counting part has anti magnetic function,and the hall component or reed switch can convert water consumption message into electrical signals to output.

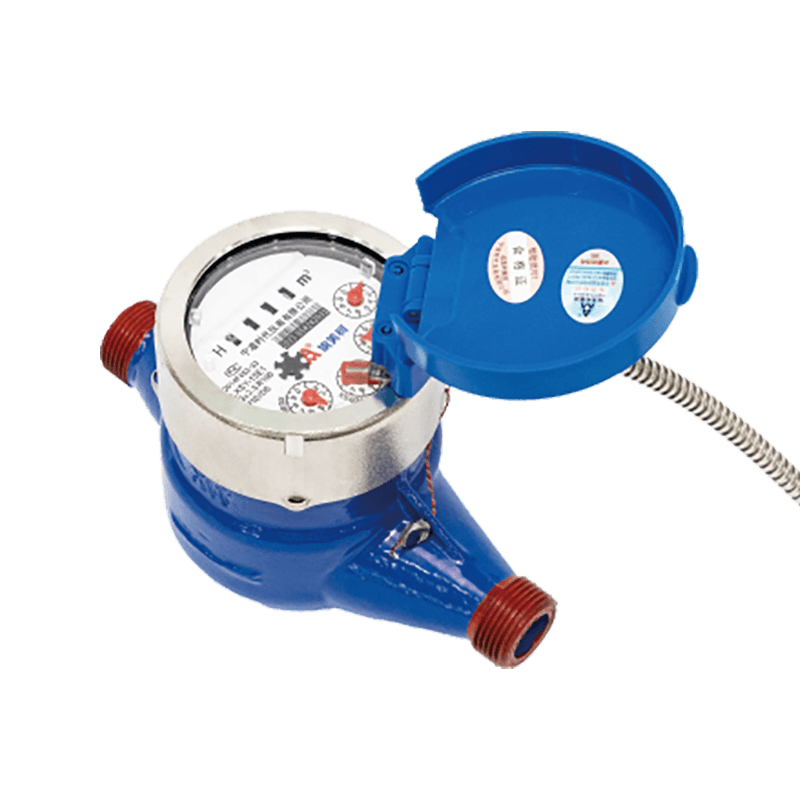

●For water meter diameter of 15-65mm,every 10 liters water consumption will send one pulse signal.
●For water meter diameterof 80-100mm,every 100 liters water consumption will send one pulse signal.
●For water meter diameter of 150-200mm,per ton water consumption will send one pulse signal.

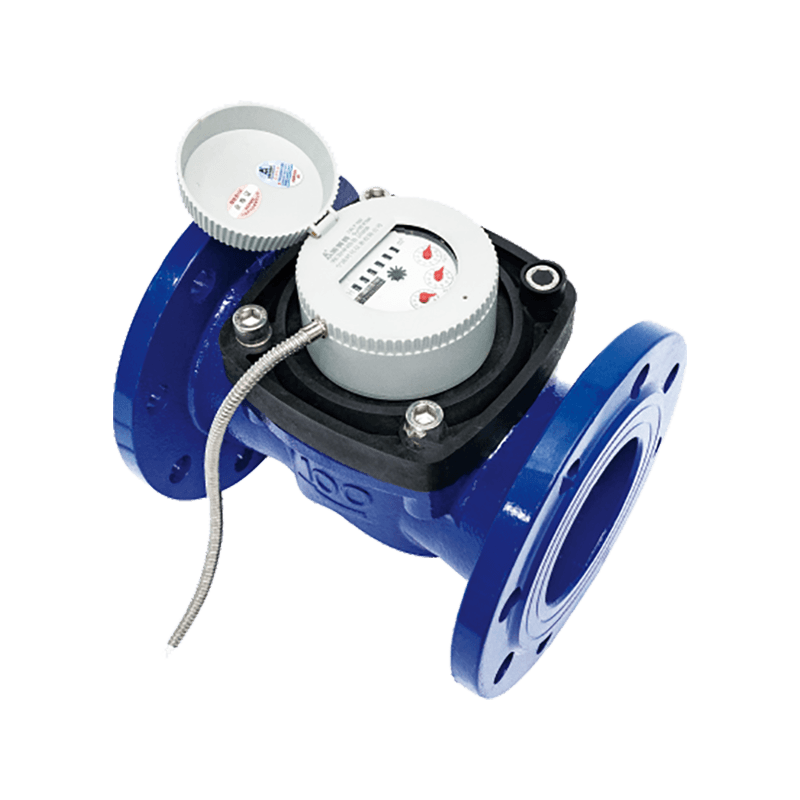

●For water meter diameter above 250mm,every 10 ton water consumption will send one pulse signal.
●The technical parameters comply with the international standard IS04064.
Conditions of Use
Water temperature:The working temperature for cold water meter between 0℃and 30℃,for hot water meter no higher than 90℃
Pressure:≤1 MPa
Maximum Permissible Error
Q1≤Q<Q2±5%;
Q2≤Q≤Q4±2%
|
Model |
Nominal Diameter |
Product Name |
|||
|
LXSY(pulse) |
15mm~65mm |
Remote Transmission Water Meter |
|||
|
LXSLY(vertical pulse) |
15mm~25mm |
Remote Transmission Water Meter |
|||
|
LXLY(pulse) |
80mm~300mm |
Remote Transmission Water Meter |
|||
