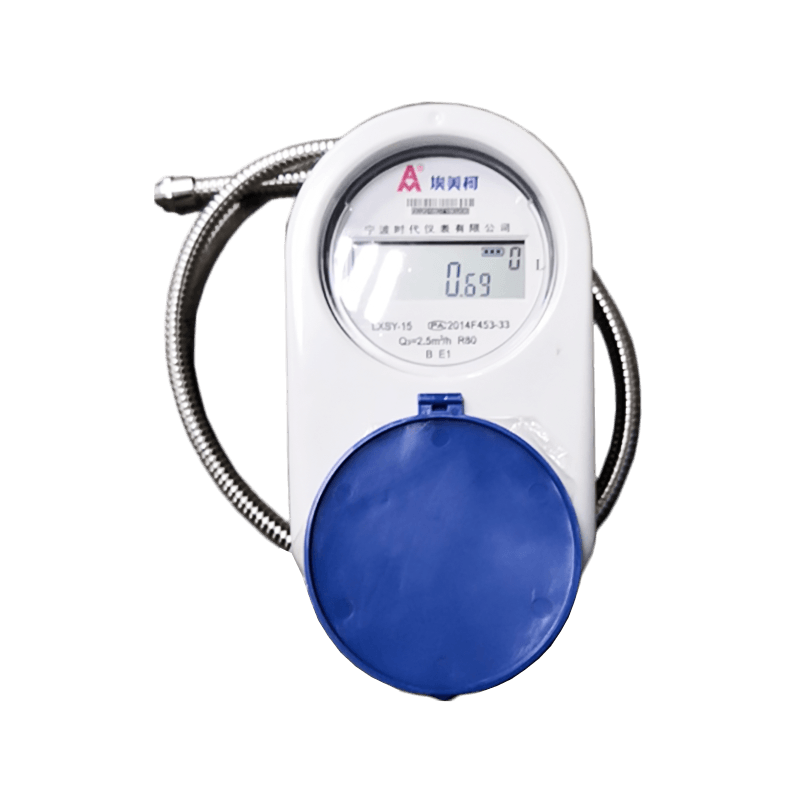

Made of high-quality materials, copper shell, iron shell or stainless steel body shell is optional. It is suitable for cold water or hot water. It is available with or without valve. Adopting advanced data encoding and verification methods, communication reliability is high. It complies with the technical requirements for electromagnetic compatibility of electronic products such as EMC, ESD, and EMI, and is at the level in the industry. The types of signaling sensors available for selection include reed switches, Hall elements, photoelectric elements and other sensors; using high-reliability sensors with strong interference resistance and long service life; the technical indicators of the original water meter will not be changed; the original water meter words will be retained. Wheel display reading function; adopts special structural design and advanced testing methods to ensure reliable signal collection; the transmission distance from the water meter to the data collection device is 150M; wide range of use, can be used with various data collection devices; dry type, submersible type , hot and cold water are optional; some can be realized by modifying ordinary water meters.
R≥160, Temperature level: cold water should not be higher than 30℃ (hot water should not be higher than 90℃) and not lower than 0℃. Water pressure level: MAP 10Bar.
●Dry dial structure easy to read and keep clean for a long time.
●Adopt photo-electronic coding passive direct reading technology.
●Adopt RS485 or M-BUS data output.
●Adopt non-contact sensors will not affect performance of water meter.
●Adopt low-powerdesign,power supply only required when readings.
●Can form a system with the upper computer to achieve remote meter reading and management.
● The accuracy of water meter reach R200.
Record the total amount of water flowing through tap water pipeline and convert water consumption information into data signal,you can read data through handheld reading devices,or you can achieve remote meter reading and management through existing communication networks.
|
Model |
Nominal Diameter |
Product Name |
|
LXSY-15E~40E(direct reading) |
15 mm~40 mm |
Photoelectric direct reading water meter |
|
LXLY-50~300(direct reading) |
50 mm~300 mm |
Photoelectric direct reading water meter |
|
LXLY-50WS~200WS |
50 mm~200 mm |
Photoelectric direct reading watermeter |
|
LXSLY-15E~25E(direct reading) |
15 mm~25 mm |
Photoelectric direct reading water meter |
