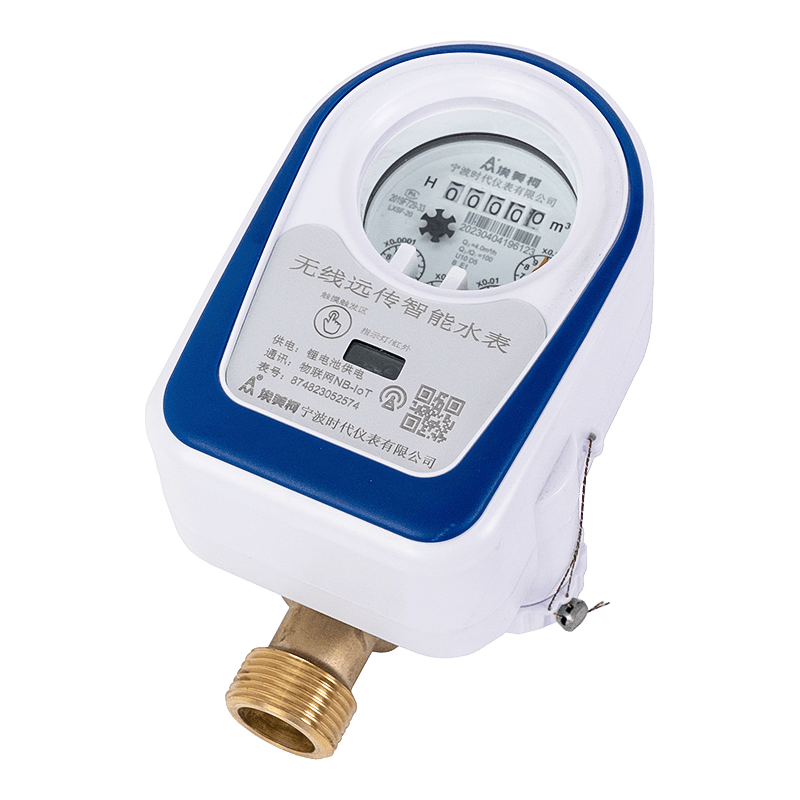

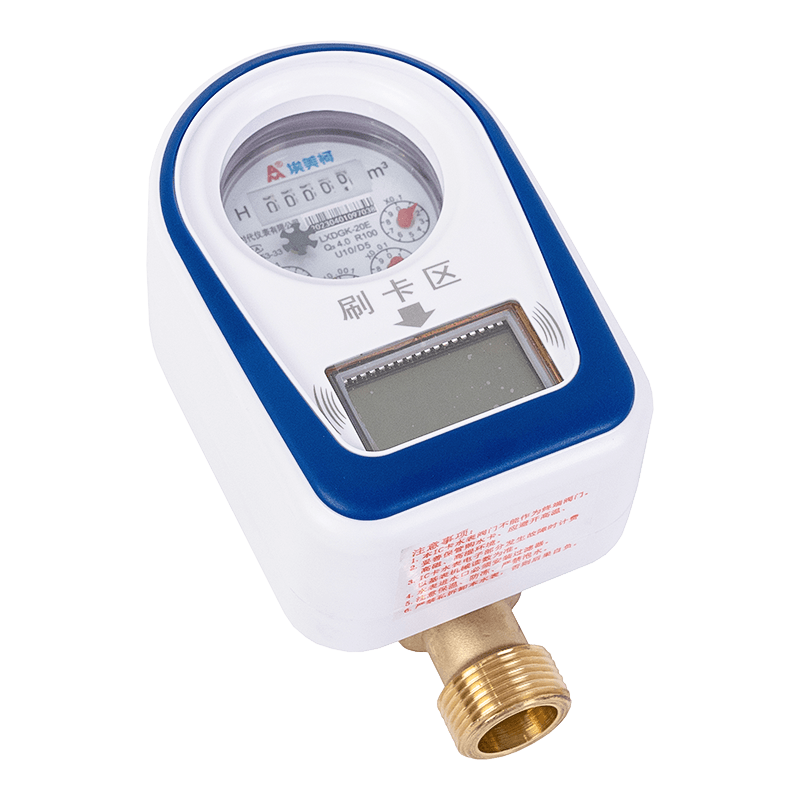

Made of high-quality materials, copper shell is used for DN15-DN32, and iron shell is used for DN40 and above. Available with cold or hot water. High protection level: IP68. It has the function of collecting water bills in advance. It adopts electric suspension ball valve technology to ensure reliable operation and small pressure loss. Contactless card (RF card) technology, wireless transmission. IC cards can record the operation of water meters. Microcomputer, micro-storage technology, highly integrated and highly reliable. Microcomputer, micro-storage technology, highly integrated and highly reliable. Prevent external electromagnetic interference.
Details
R≥100, Temperature level: cold water should not be higher than 30℃ (hot water should not be higher than 90℃) and not lower than 0℃. Water pressure level: MAP 10Bar.
Feature

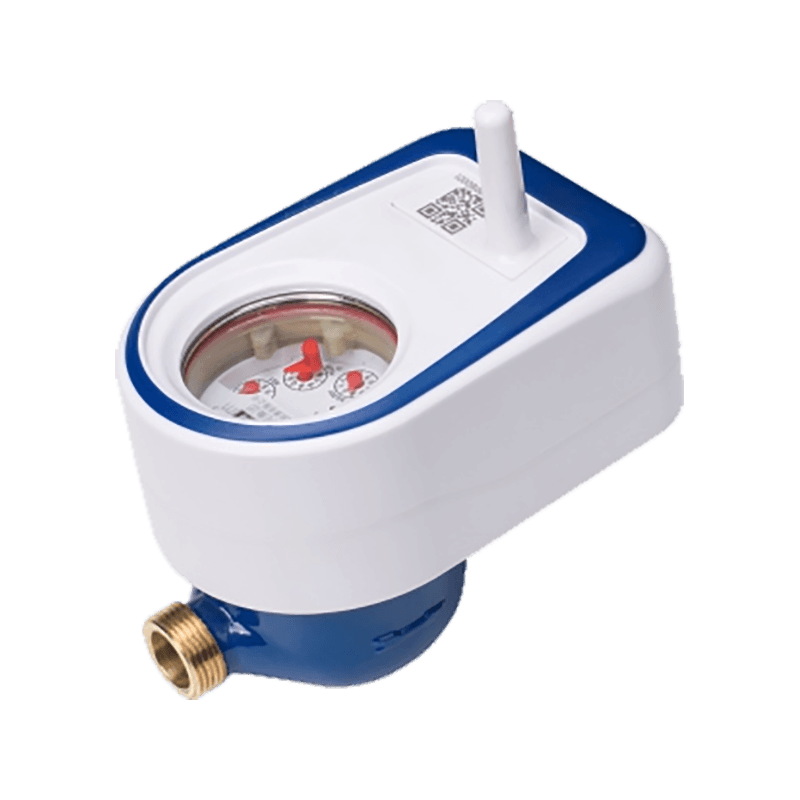

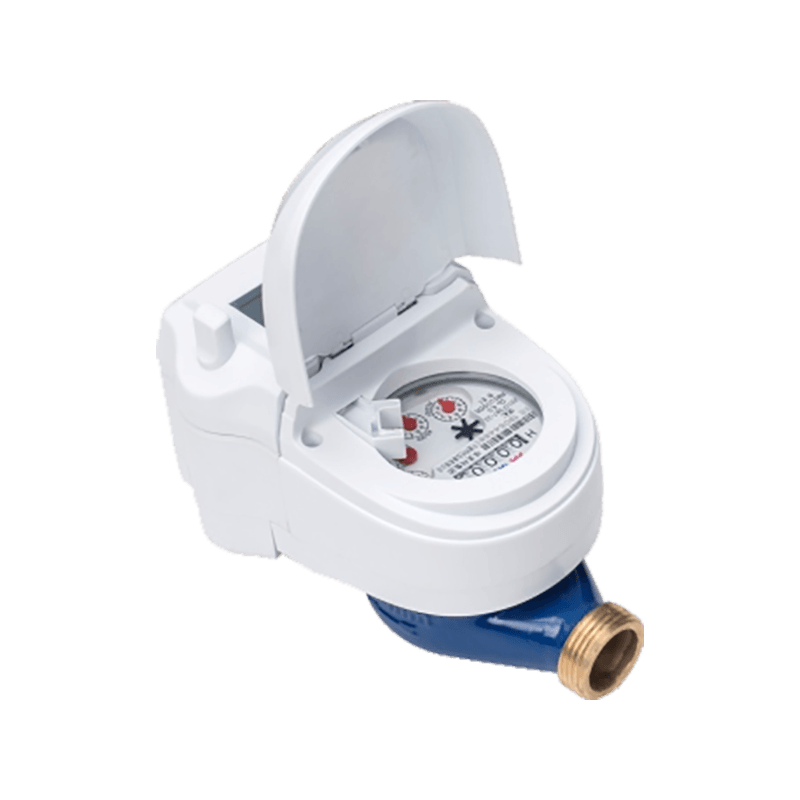

●Bluetooth water meter app can achieve self-upgrades and uploads measurement data by connecting Bluetooth DTU.
●Downlink transmission of DTU by Bluetooth communication,uplink transmission of DTU by GPRS or NBIoT.
●No need to connect 220V electric supply and wiring.
●The Bluetooth water meter adopts a prepaid mode(with arrearage and water cut-off function),no need for physical cards(no more headache with card loss and card replacement).
●Users can connect to the water meter through mobile phones.
●You can use app and bluetooth function in mobile phone to operate such as recharge,meter reading,balance query, historical usage query,recharge record query,etc.
●App also has functions such as voltage alarm,regular maintenance and management of valves.
●Bluetooth water meters can greatly save user time and reduce property management costs.
Application
Record the total amount of water flowing through the tap water pipeline.
Maximum Permissible Error
Q1≤Q<Q2±5%;
Q2≤Q≤Q4±2%
Basic Parameters
Temperature level:T30
Pressure level:MAP10
Pressure loss:△P63
Sensitivity level of upstream flow field:U10
Sensitivity level of downstream flow field:D5
Conditions of Use
● Water temperature:The working temperature for cold water meter between 0℃ and 30℃,for hot water meter no higher than 90℃.
● Pressure:≤1 MPa
Installation Requirements
●The water meter must be horizontally installed,with the reading surface upwards and the direction of the arrow being the same as the direction of the water flow.
●The pipeline must be flushed before installing the water meter.
●The water meter must be installed in a dry and easy to maintain environment, install in a dedicated water meter box is recommended.
●Valves must be installed at the inlet and outlet of the water meter.
