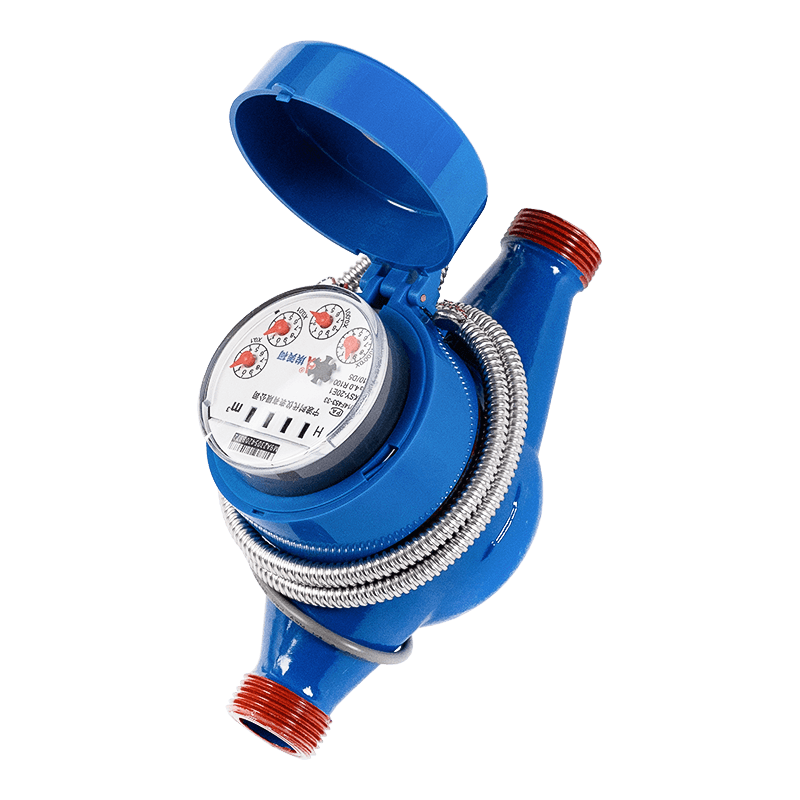

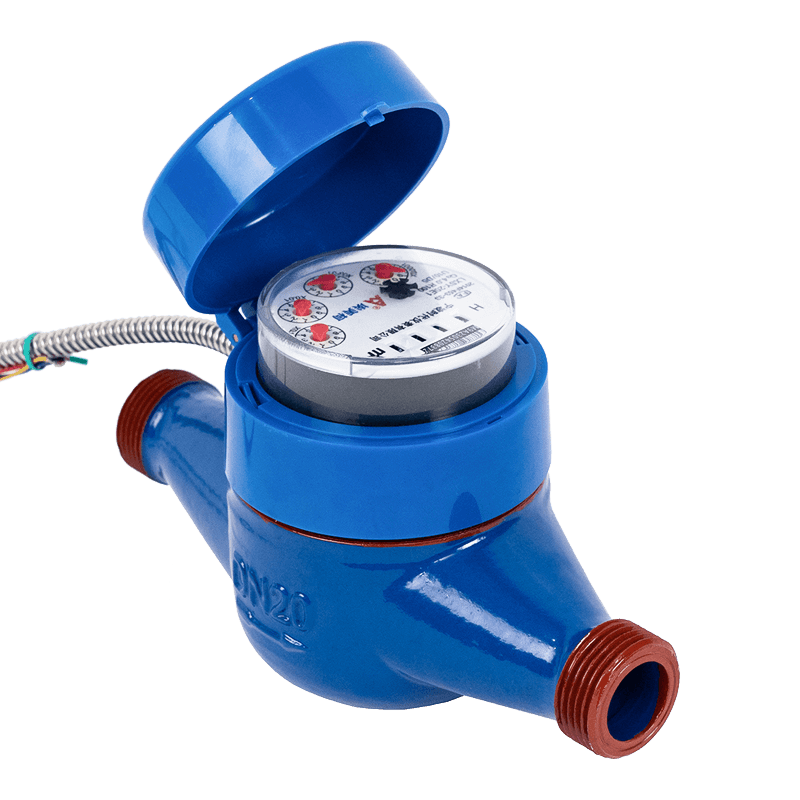

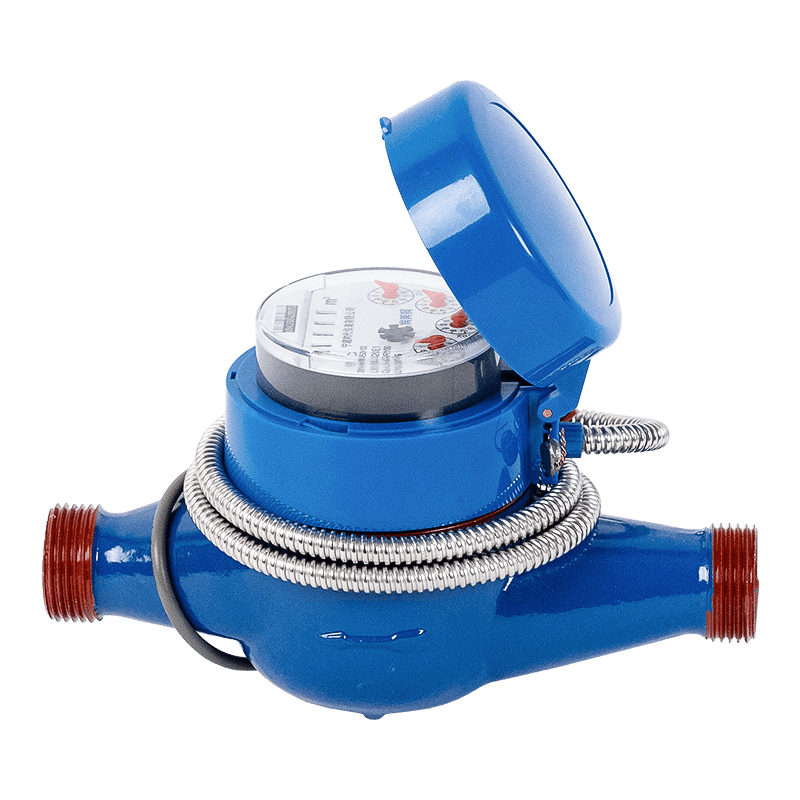

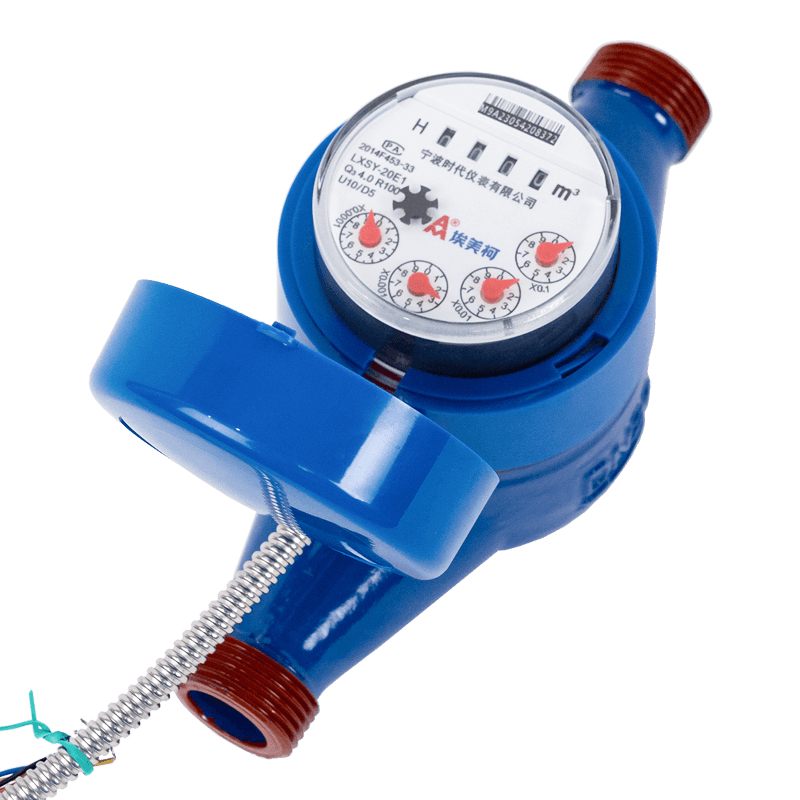

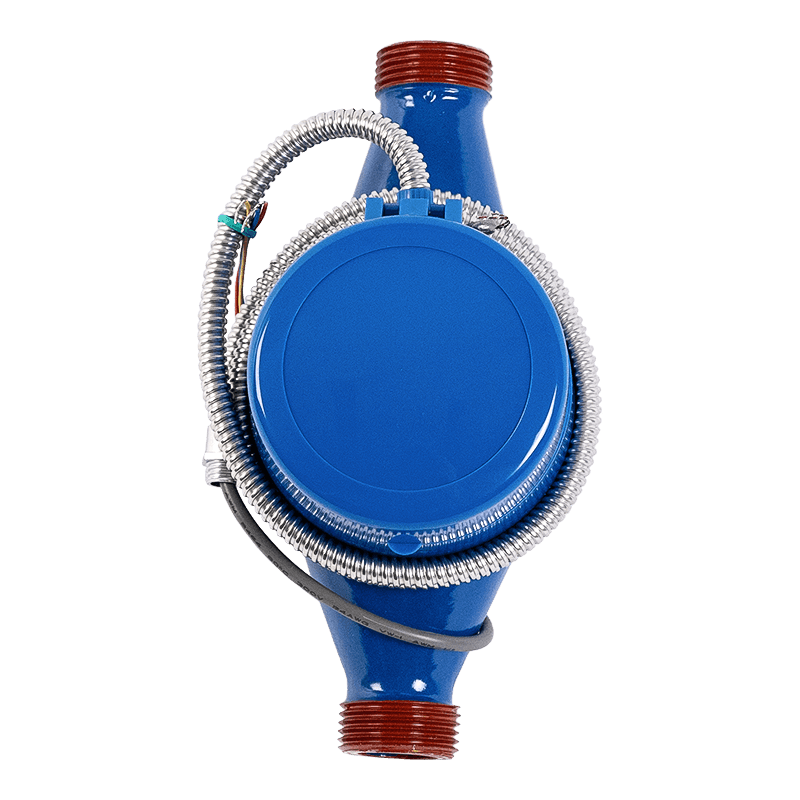

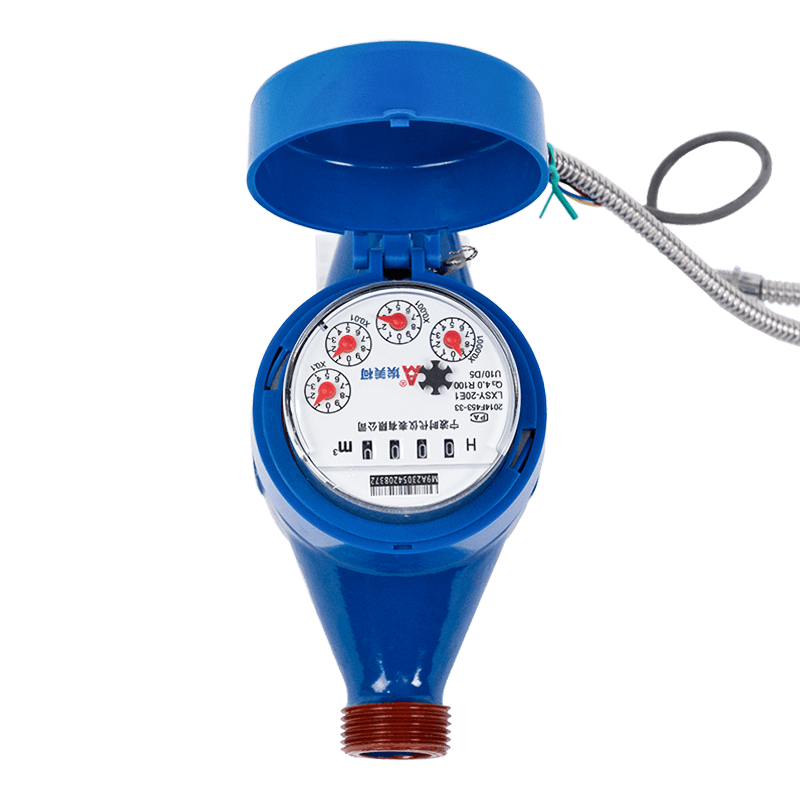

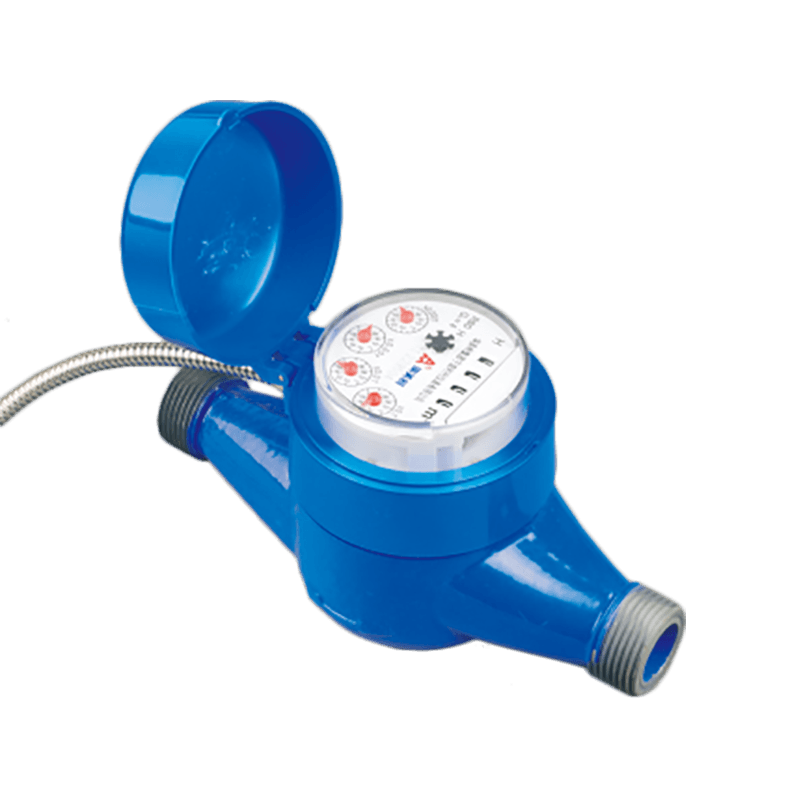

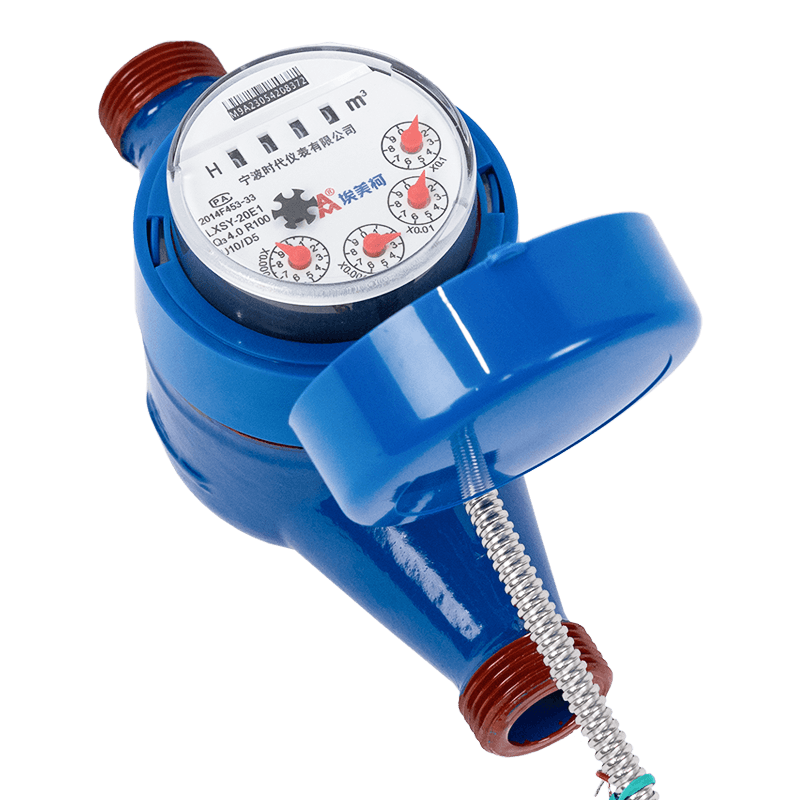

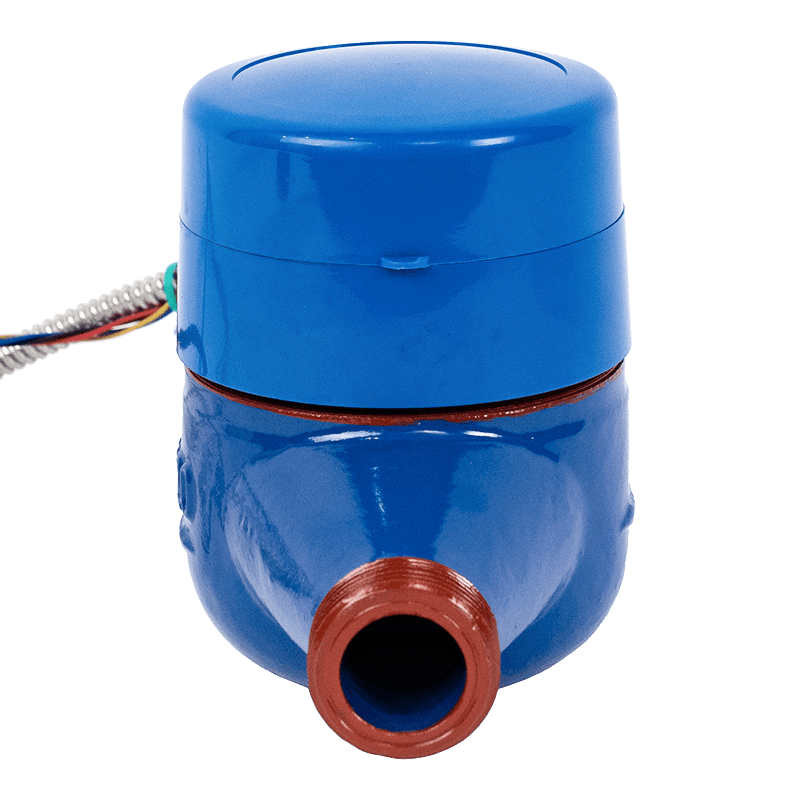

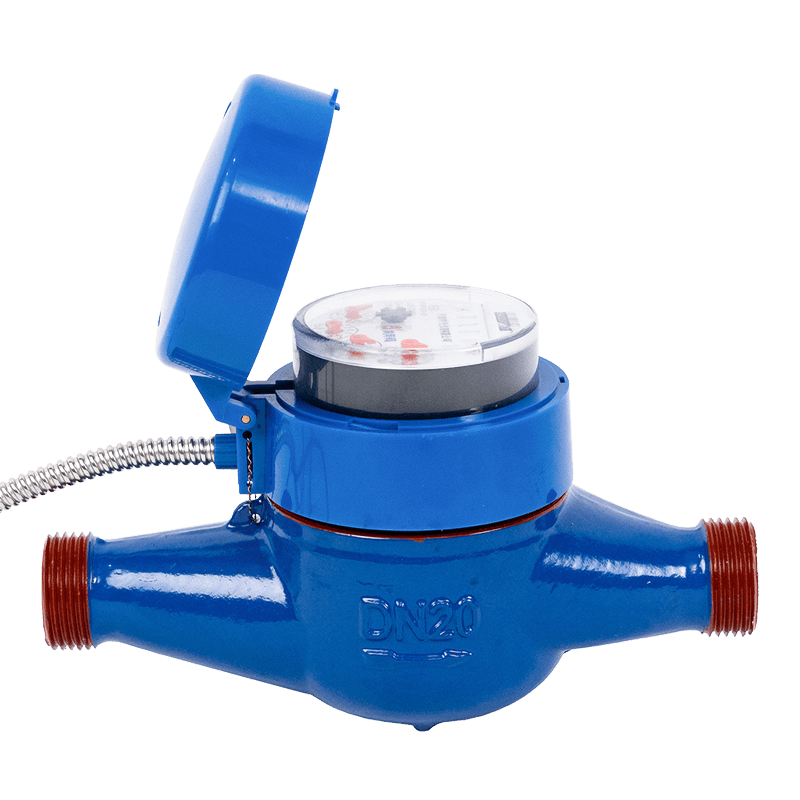

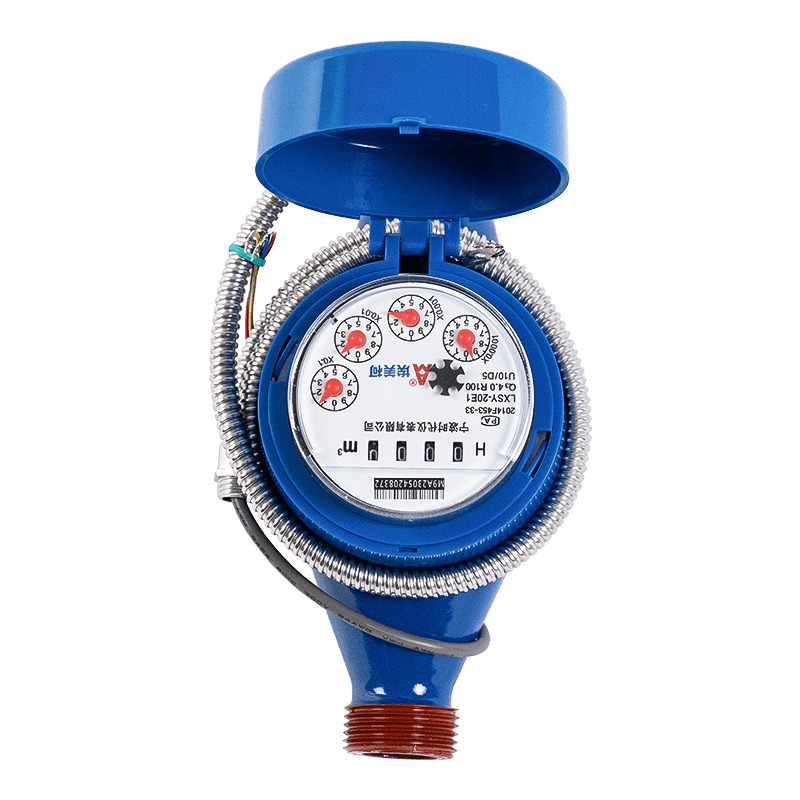

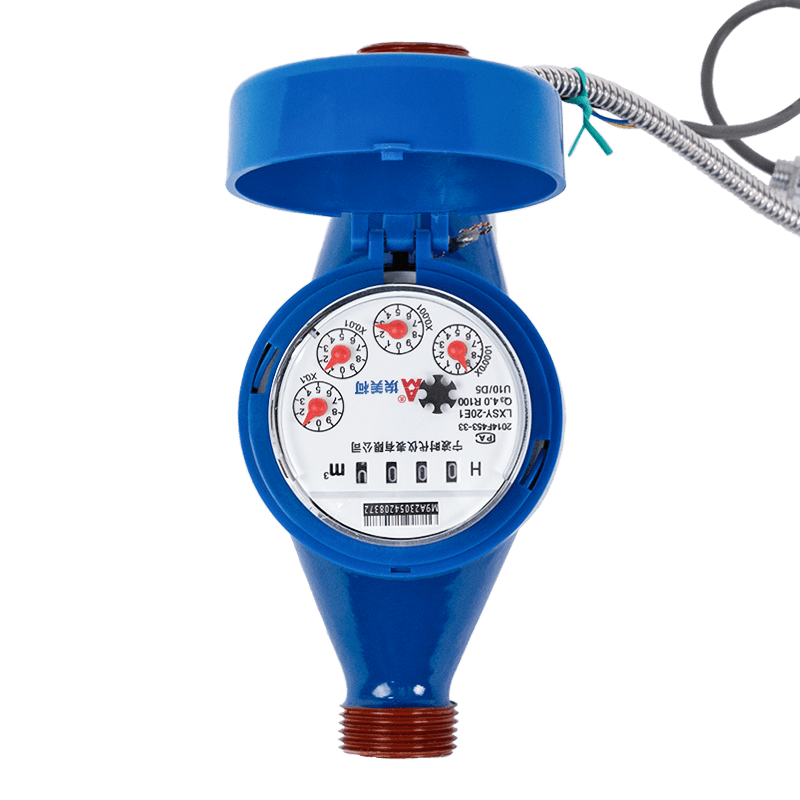

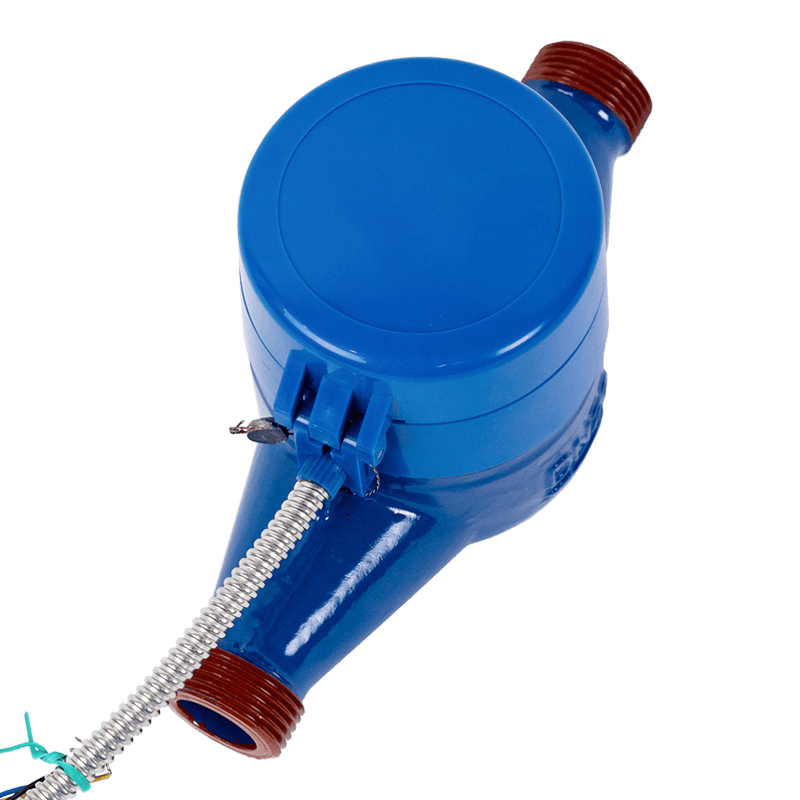

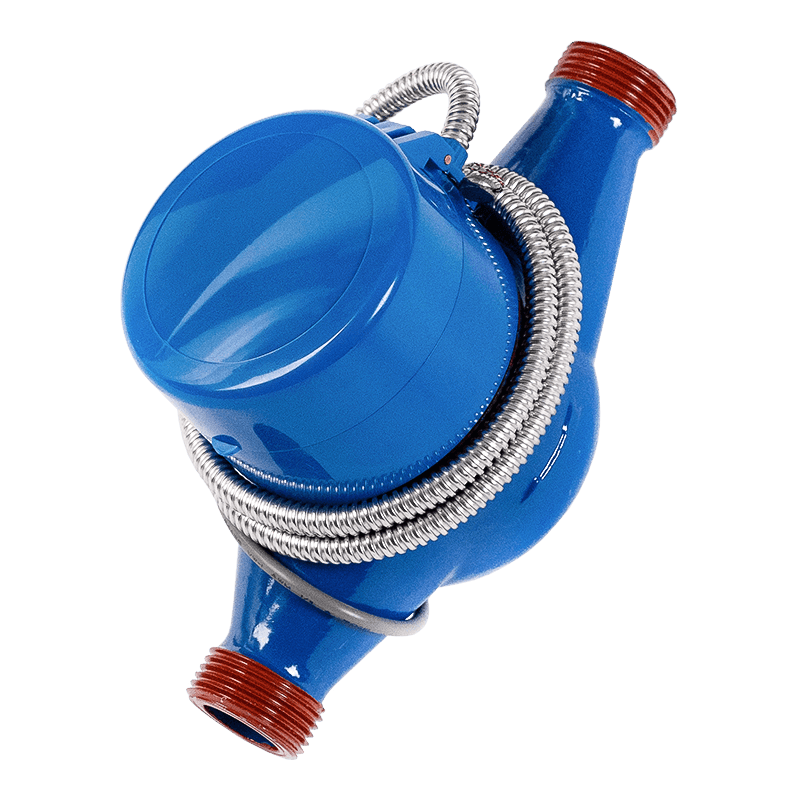

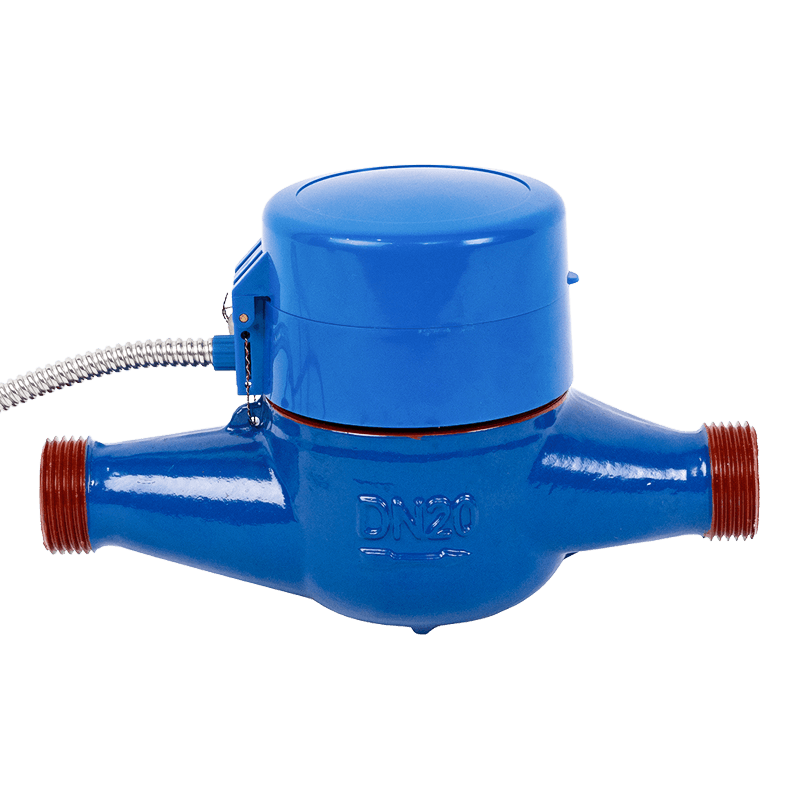

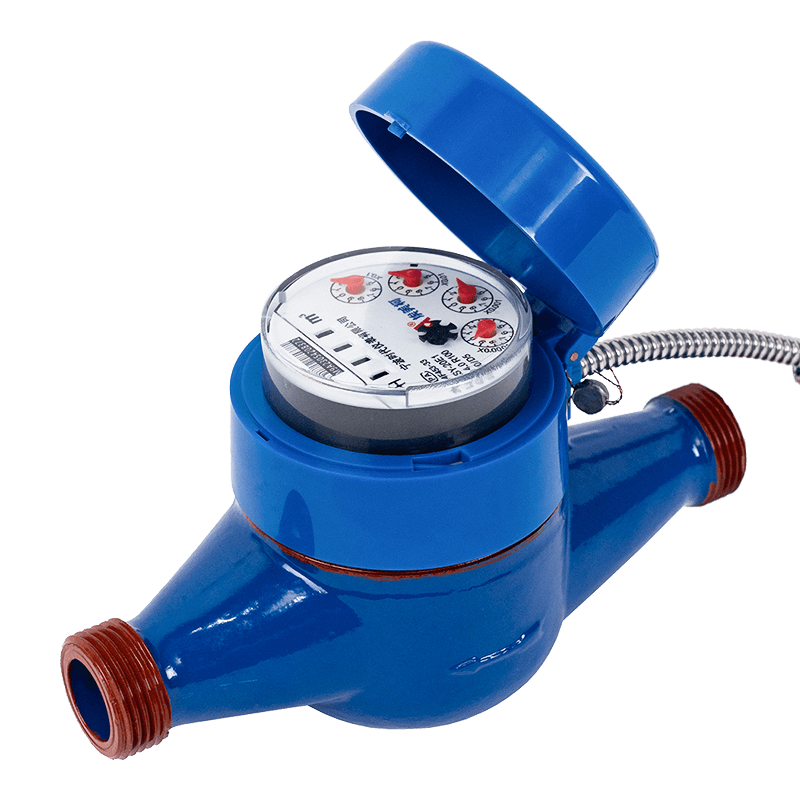

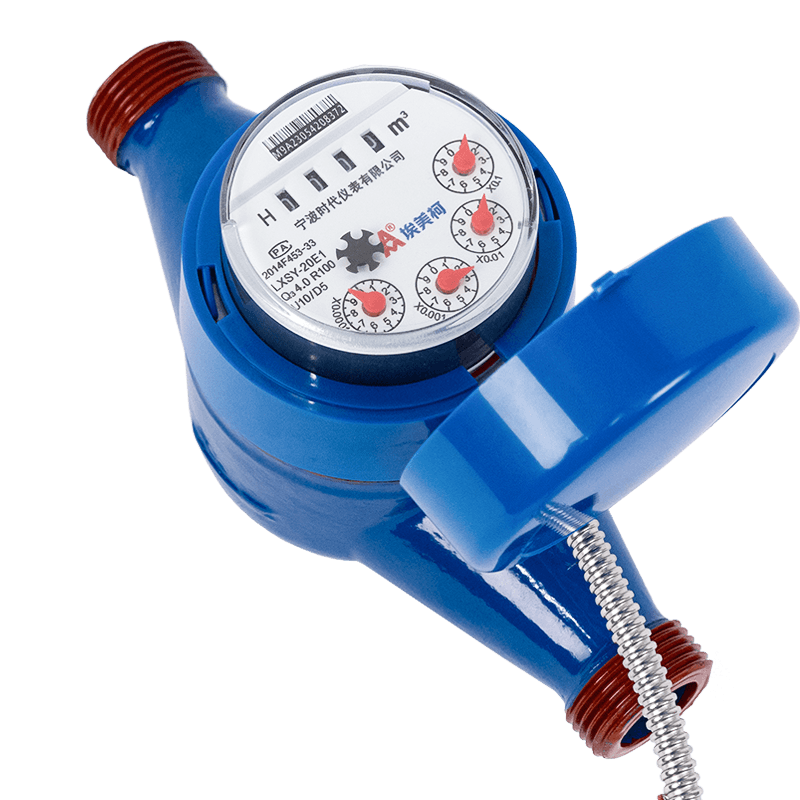

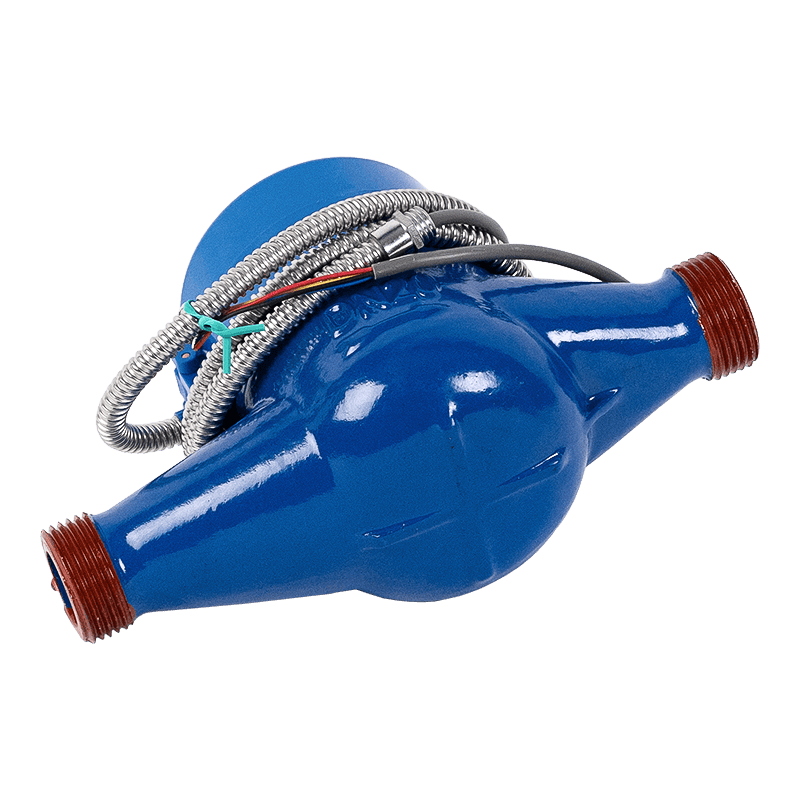

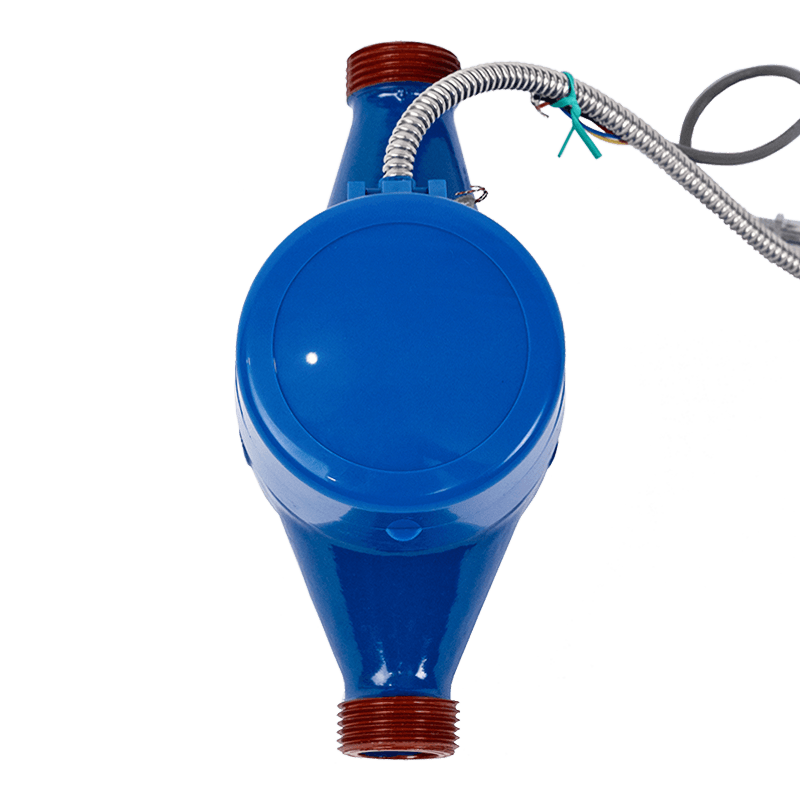

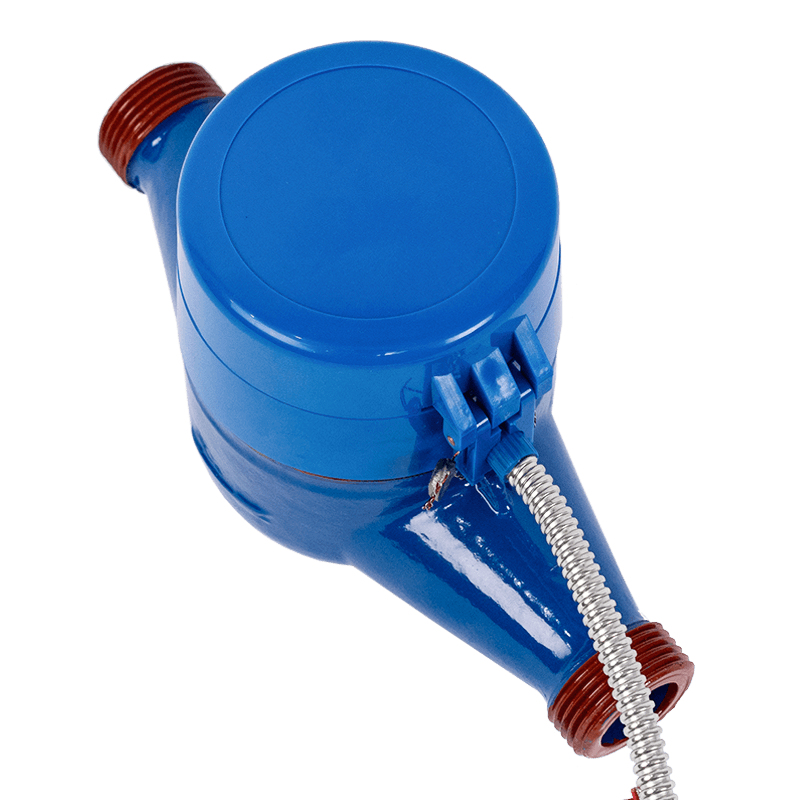

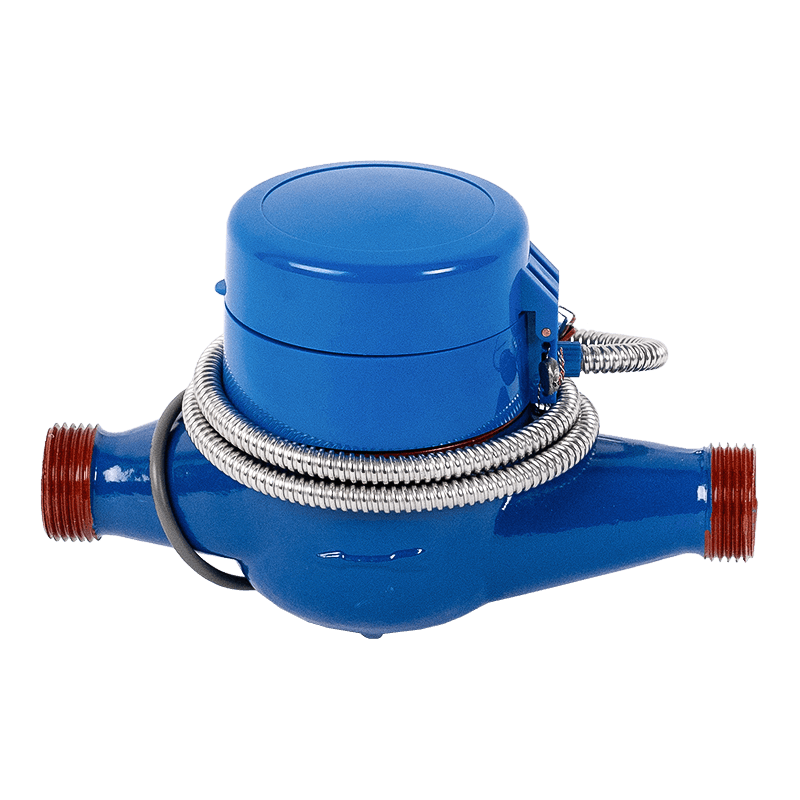

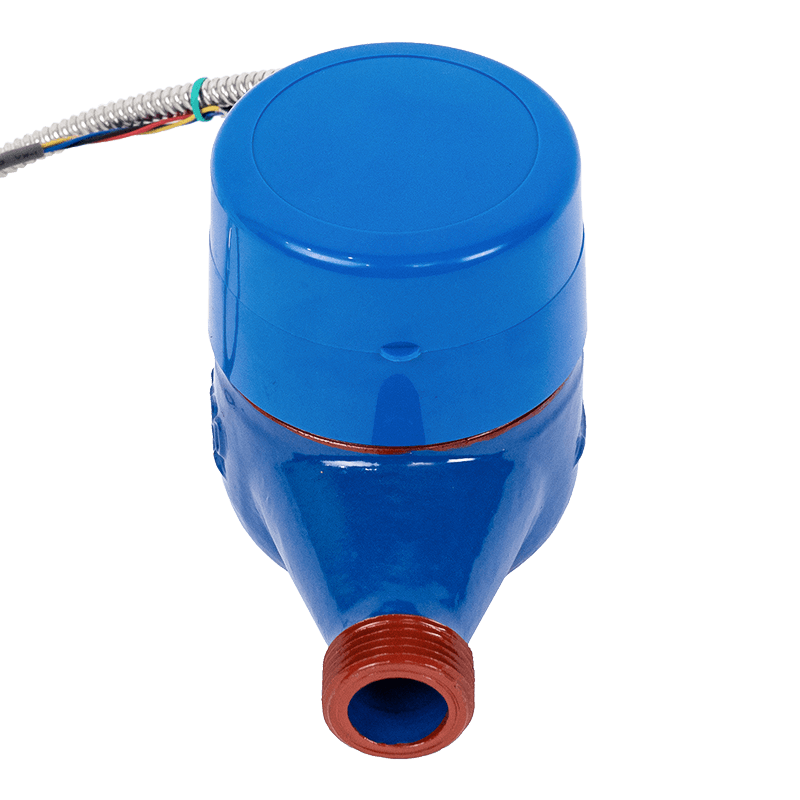

Made of high-quality materials, copper shell, iron shell or stainless steel body shell is optional. Available with cold or hot water. Precision readings can be made to tens of liters. High accuracy (R160). Read the meter regularly. High protection level: IP68. The meter has no built-in battery and can be read immediately after being powered on. Ultra-low power consumption design. Communication method M-BUS or RS485 is optional. High resistance to light interference. Proactively report sensor fault information and battery status information.
Details
R≥100, Temperature level: cold water should not be higher than 30℃ (hot water should not be higher than 90℃) and not lower than 0℃. Water pressure level: MAP 10Bar.
Feature
●Dry dial structure easy to read and keep clean for a long time.
●Adopt photo-electronic coding passive direct reading technology.
●Adopt RS485 or M-BUS data output.
●Adopt non-contact sensors will not affect performance of water meter.
●Adopt low-powerdesign,power supply only required when readings.
●Can form a system with the upper computer to achieve remote meter reading and management.
● The accuracy of water meter reach R200.
Application
Record the total amount of water flowing through tap water pipeline and convert water consumption information into data signal,you can read data through handheld reading devices,or you can achieve remote meter reading and management through existing communication networks.
Main Technical Data
|
Model |
Nominal Diameter |
Product Name |
|
LXSY-15E~40E(direct reading) |
15 mm~40 mm |
Photoelectric direct reading water meter |
|
LXLY-50~300(direct reading) |
50 mm~300 mm |
Photoelectric direct reading water meter |
|
LXLY-50WS~200WS |
50 mm~200 mm |
Photoelectric direct reading watermeter |
|
LXSLY-15E~25E(direct reading) |
15 mm~25 mm |
Photoelectric direct reading water meter |
