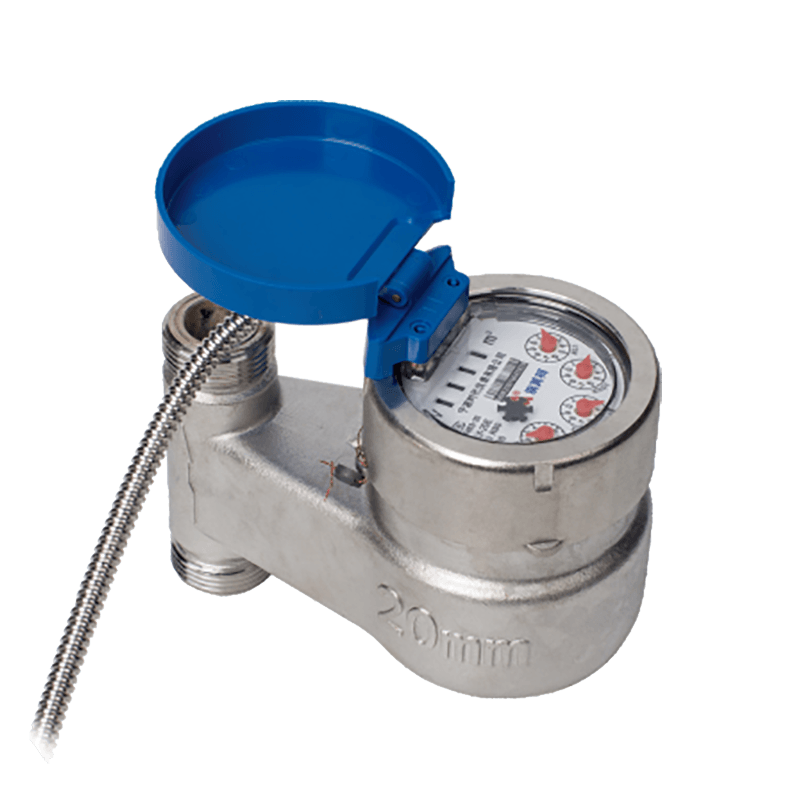

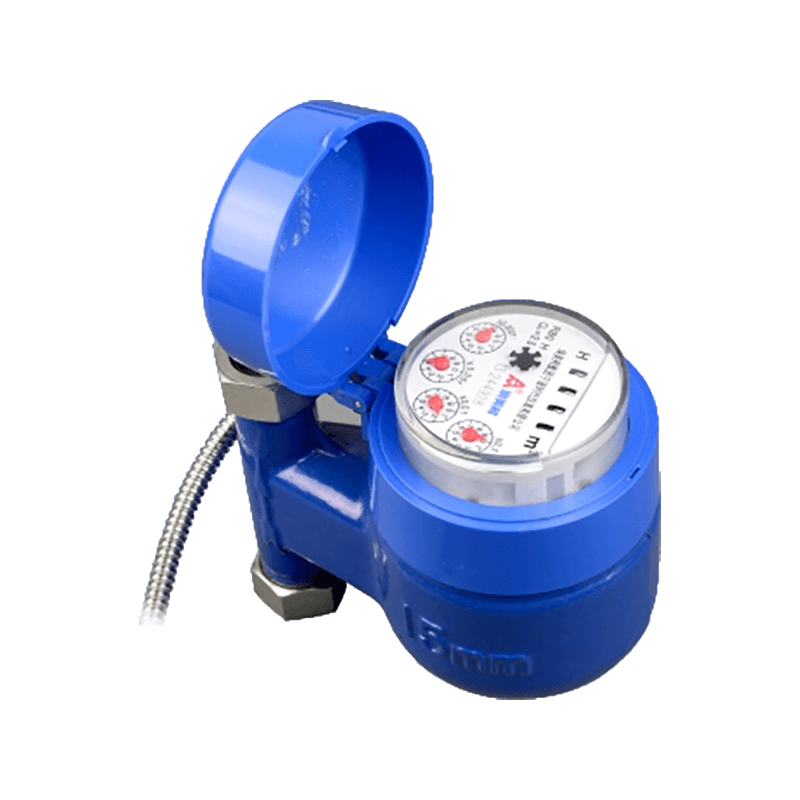

Made of high-quality materials, copper shell, iron shell or stainless steel body shell is optional. Available with cold or hot water. The water meter is installed vertically. Precision readings can be made to tens of liters. High accuracy (R160). Read the meter regularly. High protection level: IP68. The meter has no built-in battery and can be read immediately after being powered on. Ultra-low power consumption design. Communication method M-BUS or RS485 is optional. High resistance to light interference. Proactively report sensor fault information and battery status information.
Details
R≥100, Temperature level: cold water should not be higher than 30℃ (hot water should not be higher than 90℃) and not lower than 0℃. Water pressure level: MAP 10Bar.
Application
Record the total amount of water flowing through the tap water pipeline
Maximum Permissible Error
Q1≤Q<Q2±5%;
Q2≤Q≤Q4±2%
Conditions of Use
Water temperature:The working temperature for cold water meter between 0℃ and 30℃.
Pressure:≤1 MPa
Basic Parameters
Temperature level:T30
Pressure level:MAP 10
Pressure loss:△P63
Sensitivity level of upstream flow field:U10
Sensitivity level of downstream flow field:D5
Electrical Parameter
|
Transfer rate |
1200bps,2400bps,4800bps,9600bps. |
|
Communication distance |
300m. |
|
Working current |
M-BUS(1.0-1.3)mA,RS485(0.6-0.8)mA. |
|
Working voltage |
DC36V(M-BUS),DC12V-24V(RS485)not support long-term power supply. |
|
Minimum data storage time |
Unlimited. |
|
Connection |
M-BUS standard(2 core cable connection without polarity);RS485 standard(4 core cable connection,including two cores for power supply and another two cores for signal reading only supply power when reading data). |
|
Wire material |
M-BUS use RVV2x(0.5-1mm²)two core parallel cable,RS485 use RVV4x(0.5-1mm2)shielding wire the resistance of the wire not exceed 6Ω per 100 meters. |
|
Electromechanical conversion error |
≤±1 minimum conversion index value. |
|
Communication protocol |
Modbus communication protocol or customer specified. |
Installation Requirements
●The water meter must be vertically installed,with the reading surface upwards and the direction of the arrow being the same as the direction of the water flow.
●The pipeline must be flushed before installing the water meter.
●The water meter must be installed in a dry and easy to maintain environment,install in a dedicated water meter box is recommended.
●Valves must be installed at the inlet and outlet of the water meter.
