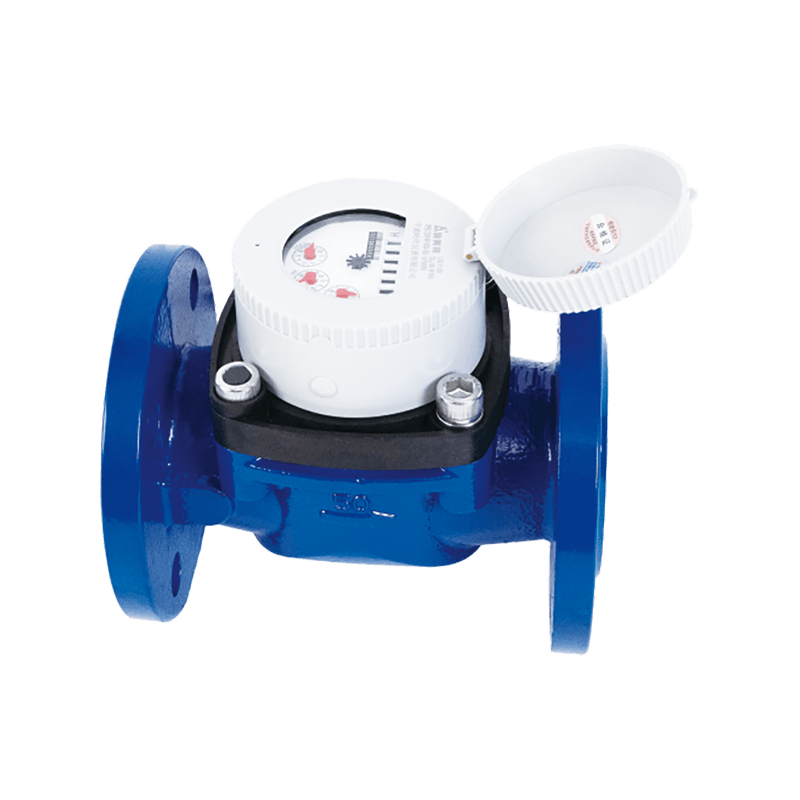

The optional passive direct-reading counter is a photoelectric direct-reading meter. The optional pulse output counter is a pulse sending table. The optional wireless accessory is a wireless watch. Sealed register (IP 68). Dry type, magnetic transmission, the counter is vacuum sealed to prevent condensation and atomization, and can maintain clear readings for a long time. Detachable movement structure makes maintenance easier. Adopting the principle of hydraulic dynamic balance, the initial flow rate is low. The combination of steel jade and carbide steel greatly extends the service life of the water meter. Adjust internally and avoid adjusting the meter without permission. Built-in stainless steel filter for user convenience. The wireless module and base meter adopt a split structure, plug and play.
R≥100, Temperature level: cold water should not be higher than 30℃ (hot water should not be higher than 90℃) and not lower than 0℃. Water pressure level: MAP 10Bar.
Used for pipelines with relatively small flow fluctuations that require consideration of small flow rates, such as main pipelines,factories,etc.It is particularly suitable for measuring large flow rates, such as in places behind water pumps,secondary water supply,etc.
●Hydraulic dynamic balance technology,wider range of measurement.
●Multi point adjustment technology,durable movement,maintain accuracy for a long time,longer service life.
●Vacuum copper sealed counter,IP68 waterproof,prevents surface fogging.
●The detachable interchangeable movement which is easy to maintain,and the anti magnetic design eliminates external magnetic field interference.
●Epoxy resin spraying,compliance with European drinking water standards.
●Non magnetic sensing electromechanical conversion modules can be installed on-site, with RS-485 or M-BUS standard interfaces.
|
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
|
G8/T778 |
Q3/Q1 |
R100/R125/R160 |
||||||
|
Q²/Q1 |
1.6 |
|||||||
|
Overloda Flow Q4 |
50 |
50 |
78.75 |
125 |
200 |
312.5 |
500 |
|
|
Common Flow Q3 |
40 |
40 |
63 |
100 |
160 |
250 |
400 |
|
|
Humidity Level |
T30 |
|||||||
|
Pressure Level |
MAP16 |
|||||||
|
Pressure Loss |
△P63 |
|||||||
●Can be installed horizontally,vertically,and obliquely.
●When measuring,the tube must be full.
●Install a straight pipe sectionwith a length longer than 3 diameters in front of the inlet end.
●Do not directly install pipe with significant changes in cross-sectional area at the outlet end of the meter.
