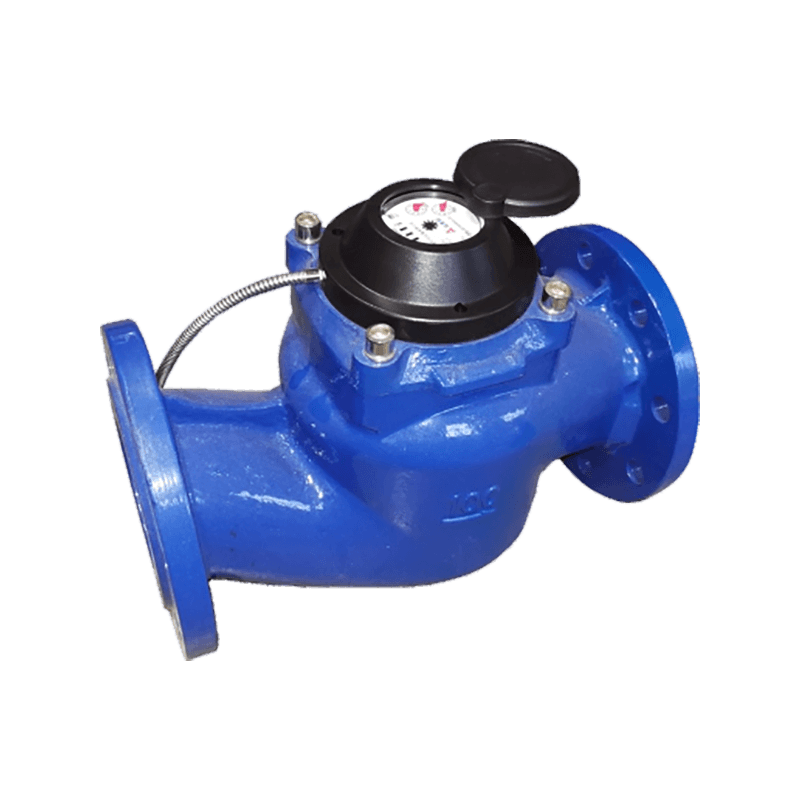

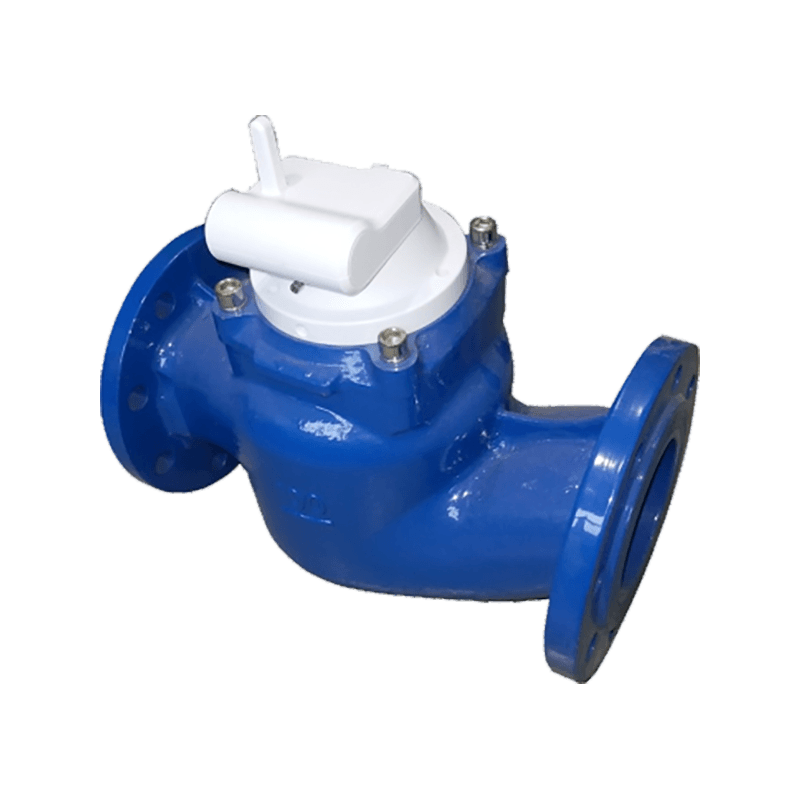

The optional passive direct-reading counter is a photoelectric direct-reading meter. The optional pulse output counter is a pulse sending table. Optional wireless modules and accessories are wireless meters. Sealed register (IP 68). Dry type, magnetic transmission, the counter is vacuum sealed to prevent condensation and atomization, and can maintain clear readings for a long time. Detachable movement structure makes maintenance easier. Adopting the principle of hydraulic dynamic balance, the initial flow rate is low. The combination of steel jade and carbide steel greatly extends the service life of the water meter. Adjust internally and avoid adjusting the meter without permission. Built-in stainless steel filter for user convenience. The wireless module and base meter adopt a split structure, plug and play.
R≥200, Temperature level: cold water should not be higher than 30℃ (hot water should not be higher than 90℃) and not lower than 0℃. Water pressure level: MAP 10Bar.
Record the total amount of water flowing through the tap water pipeline.
●Adopts a detachable structure for easy maintenance.
●Combines the advantages of horizontal spiral wing water meter and rotary wing water meter,with measurement accuracy up to R200(especially at low flow rates),very suitable for situations with significant water flow changes.
●The built-in stainless steel filter screen to ensure long-term and stable operation
●Optional passive direct reading counter(with RS-485 orM-BUS standard interface)or pulse output counter, wireless remote transmission accessories,and NB-loT module
|
Model |
Diameter |
Long |
Width |
Height |
Weight |
|
mm |
Kg |
||||
|
LXLY-50Ws |
50 |
280 |
140 |
228 |
13 |
|
LXLY-65WS |
65 |
300 |
150 |
238 |
18 |
|
LXLYS-80WS |
80 |
370 |
180 |
290 |
21 |
|
LXLY-100Ws |
100 |
370 |
220 |
306 |
24 |
|
LXLY-150WS |
150 |
500 |
300 |
445 |
58 |
|
LXLY-200Ws |
200 |
500 |
350 |
564 |
94 |
|
Model |
R |
Overload Flow |
Common Flow |
Boundary Flow |
Minimum Flow |
|
LXLY-50Ws |
200 |
50 |
40 |
0.32 |
0.2 |
|
LXLY-65WS |
200 |
50 |
40 |
0.32 |
0.2 |
|
LXLYS-80WS |
200 |
78.75 |
63 |
0.5 |
0.31 |
|
LXLY-100WS |
200 |
125 |
100 |
0.8 |
0.5 |
|
LXLY-150WS |
200 |
200 |
160 |
0.96 |
0.8 |
|
LXLY-200WS |
200 |
312.5 |
250 |
2 |
1.25 |
Water temperature:The working temperature for cold water meter between 0℃ and 30℃, for hot water meter no higher than 90℃.
Pressure:≤1 MPa
Q1≤Q<Q2±5%;
Q2≤Q≤Q4 ±2%
●The water meter must be horizontally installed,with the reading surface upwards and the direction of the arrow being the same as the direction of the water flow.
●The pipeline must be flushed before installing water meter.
●The water meter must be installed in a dry and easy to maintain environment,install in a dedicated water meter box is recommended.
●Valves must be installed at the inlet and outlet of water meter.
